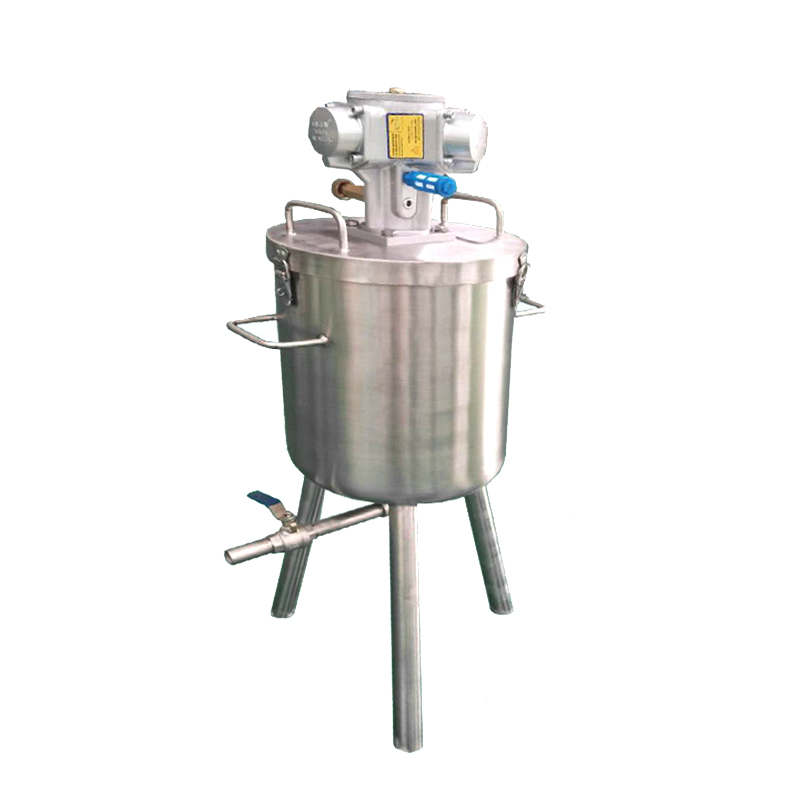

The TG-T-AMP3 pneumatic mixing barrel is designed with practicality and convenience in mind. Its unique module fixed welding method not only ensures the accuracy of the welding angle but also greatly improves the balance of the barrel, making the mixing process more stable and reliable. The pneumatic drive system of this mixer ensures a fast and uniform mixing process. Whether it is liquid, paste, or solid granular materials, the ideal mixing effect can be achieved in a short time. At the same time, the mixing barrel is also explosion-proof and is especially suitable for industries with extremely high safety requirements such as the medicine and chemical industry. This mixing barrel is made of stainless steel. Stainless steel has corrosion resistance and can resist erosion by a variety of chemicals. Stainless steel has a smooth surface and is easy to clean and disinfect. This helps ensure the hygiene and sterility of the internal environment of the mixing barrel and meets the strict requirements of the food, pharmaceutical, and other industries. Stainless steel has high mechanical strength and can withstand greater pressure and impact. This makes the TG-T-AMP3 mixing barrel more stable and reliable during operation, reducing failures and downtime caused by material problems.
DETAIL PARAMETERS
Motor Model |
Air consumption |
Power |
Maximum speed |
Maximum Torque |
||||
L/min |
HP |
KW |
Speed (RPM/min) |
Torque(Nm) |
Speed (rpm/min) |
Torque(Nm) |
||
Piston |
AMP2 |
210 |
0.16 |
0.12 |
1200 |
0.95 |
600 |
1.5 |
AMP3 |
260 |
0.25 |
0.18 |
1000 |
1.7 |
500 |
2.3 |
|
AMP4 |
310 |
0.33 |
0.24 |
900 |
3.5 |
450 |
4.7 |
|
AMP5 |
395 |
0.5 |
0.37 |
750 |
4.7 |
375 |
6.5 |
|
AMP6 |
504 |
0.75 |
0.56 |
650 |
7.6 |
325 |
11.5 |
|
AMP7 |
990 |
1.5 |
1.1 |
360 |
28 |
180 |
45.8 |
|
Blade Type |
AMV0.68 |
830 |
0.93 |
0.68 |
3000 |
2.2 |
1500 |
3.5 |
AMV1.3 |
1800 |
1.7 |
1.3 |
3000 |
4.1 |
1500 |
6.3 |
|
AMV3 |
3600 |
4 |
3 |
3000 |
10 |
1500 |
12.8 |
|
AMV3.9 |
4800 |
5.2 |
3.9 |
2500 |
14.8 |
1250 |
21 |
|
AMV7 |
7700 |
9.5 |
7 |
2000 |
34 |
1000 |
53 |
