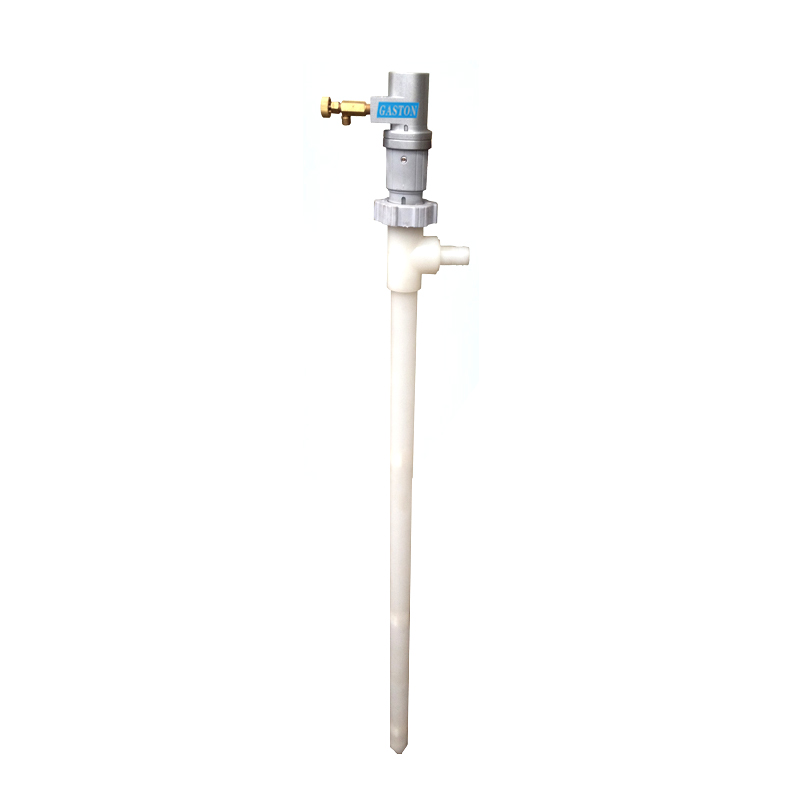

The TGVH10PVDF Gaston pneumatic barrel pump is a high-quality, durable, and efficient piece of equipment designed for transferring various liquids. It features a PVDF (Polyvinylidene Fluoride) construction, which is known for its chemical resistance and strength. This pump is suitable for a wide range of applications, including chemical, pharmaceutical, and food industries, where the transfer of aggressive or viscous fluids is required. The Gaston brand ensures reliability and performance, with a focus on safety and ease of use. Its pneumatic operation allows for hands-free pumping, reducing the risk of spills and making it ideal for both indoor and outdoor use.
DETAIL PARAMETERS
Material
Model |
Pump pipe |
Shaft |
O-RING |
Sliding bearings |
TGPS |
PP |
304ss |
VITON |
PTFE |
TGPS |
PP |
HC |
VITON |
PTFE |
TGVH |
PVDF |
HC |
VITON |
PTFE |
TGSS |
304SS |
304ss |
VITON |
PTFE |
Pneumatic pump parameter table
Product type |
Product model |
Flow rate L/min |
Power W |
Lift m |
Pump pipe Length |
Material |
Shaft material |
Temperature resistance |
Apply viscosity CPS |
Motor speed R/min |
Proportion |
Exports |
|||
Pumppipe Diameter 41mm |
Pumppipe Diameter 51mm |
Pumppipe Diameter 41mm |
Pumppipe Diameter 51mm |
||||||||||||
Explosion Proof Air Motor 640W |
TGSS10-AMV640 |
100 |
150 |
640 |
10 |
12 |
1000mm |
Stainless steel 304L |
SS316L |
100 |
700 |
14000 |
<1.5 |
25 |
|
TGSS12-AMV640 |
100 |
150 |
640 |
10 |
12 |
1200mm |
100 |
700 |
14000 |
<1.5 |
25 |
||||
TGSS316-10-AMV640 |
100 |
150 |
640 |
10 |
12 |
1000mm |
Stainless steel 316L |
100 |
700 |
14000 |
<1.5 |
25 |
|||
TGSS316-12-AMV640 |
100 |
150 |
640 |
10 |
12 |
1200mm |
100 |
700 |
14000 |
<1.5 |
25 |
||||
TGPS10-AMV640 |
100 |
150 |
640 |
10 |
12 |
1000mm |
PPHT |
C276 |
80 |
700 |
14000 |
<1.5 |
25 |
||
TGPS12-AMV640 |
100 |
150 |
640 |
10 |
12 |
1200mm |
80 |
700 |
14000 |
<1.5 |
25 |
||||
TGVH10-AMV640 |
100 |
150 |
640 |
10 |
12 |
1000mm |
PVDF |
100 |
700 |
14000 |
<1.5 |
25 |
|||
TGVH12-AMV640 |
100 |
150 |
640 |
10 |
12 |
1200mm |
100 |
700 |
14000 |
<1.5 |
25 |
