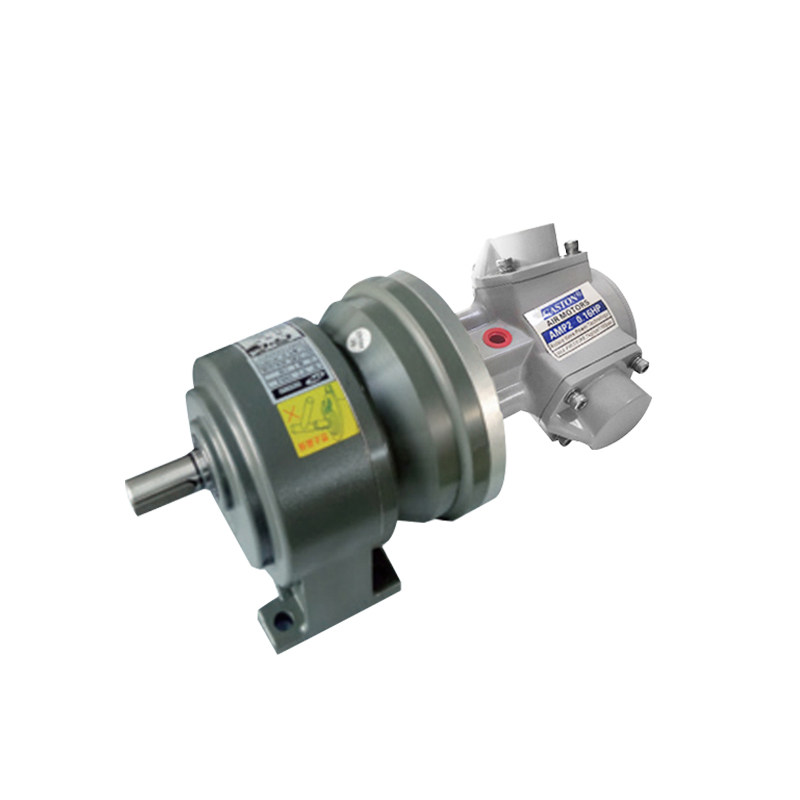

AMP2-C Helical gear reduction motors

AMP2-C helical gear reduction pneumatic motor product parameters:
Reduction ratio range: 3-200, power: 0.12KW, horsepower: 0.16HP, torque: 2.7-160.5N.m, free speed: 400-6RPM, air consumption: 210L/min, weight: 7.3-11.2KG (different reduction ratios, different weights), optional installation methods: vertical, horizontal, optional manual control valve, brake, controller.

Standard features:
Using compressed air as the power source for safety and explosion-proof, the product has an explosion-proof certificate and meets national safety standards. The helical gear reducer uses the control valve to switch the start, adjustment, and stop, and can instantly reverse the direction. The motor has an overall enclosed design and can be used in dusty, humid, and harsh environments. It is widely used in the chemical industry, semiconductors, crystals, petrochemicals, biochemical technology, paint factories, automated machinery, and other industries.

Working environment:
Fluid: Compressed air
Using pressure: 5Kg/cm2 (70psi)
Maximum working pressure: 6Kg/cm2 (85psi)
Ambient temperature: -10°C~+70°C (can only be used in a non-freezing state)
Lubricating oil: IS0VG32 or similar. (It is necessary to add oil with an oil mist, 2~3 drops per minute).
Continuous use: Yes (cannot run continuously without load).
Recommended speed: (0.3~1) x maximum output speed.

  • DETAIL PARAMETERS

Installation dimension drawing and dimension table

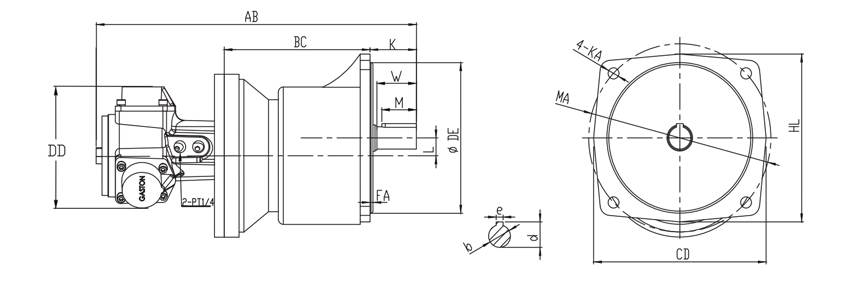

Vertical installation

Model Reduction ratio AB BC DE FA CD DD HL MA KA L K W M Axial end part
b d e
AMP2 3-10 290 160 50 6 120 120 120 140 9 16 40 30 27 Φ12h6 20.2 5
11.4” 6.3” 1.97” 0.24” 4.72” 4.72” 4.72” 5.51” 0.35" 0.63” 1.57” 1.18" 1.06" 0.47” 0.79” 0.19”
15-90 325 195 148 3 165 120 175 185 11 17.5 48 40 35 Φ22h6 25 7
12.8” 7.67” 5.83” 0.12” 6.5” 4.72" 6.88" 7.28” 0.43” 0.69” 1.89" 1.57” 1.38" 0.87” 0.98” 0.27”
100-200 355 225 170 3 195 120 205 220 12 23 58 45 40 Φ28h6 31.1 7
14" 8.85” 6.67” 0.12" 7.68” 4.72” 8.07" 8.66“ 0.47” 0.9" 2.28” 1.77” 1.57" 1.1” 1.22” 0.27"

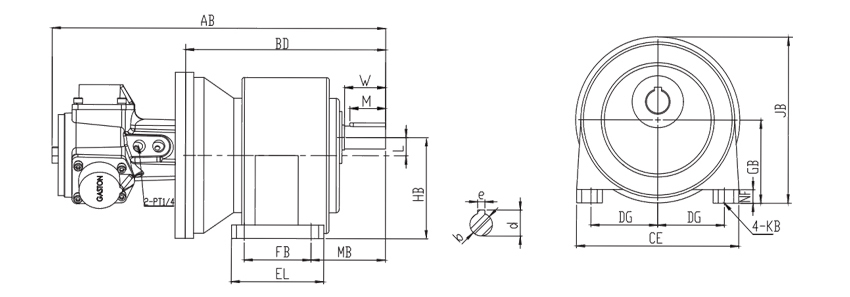

Horizontal installation

Model Reduction ratio AB BD FB EL MB HB L DG CE GB JB KB NF W M Axial end part
b d e

AMP1

AMP2

 3-10 290 160 40 65 50 88.5 16 110 135 72.5 138 9 10 30 27 Φ18h6 20.2 5
11.4” 6.3" 1.57 2.56" 1.97” 3.48" 0.63" 4.33” 5.31” 2.85" 2.85” 0.35” 0.39" 1.18” 1.06" 0.71" 0.8” 0.19”
15-90 325 195 65 90 60 97.5 17.5 130 158 80 152 11 13 40 35 Φ22h6 25 7
12.8” 7.68" 2.56" 3.54” 2.36” 3.84” 0.69” 5.12” 6.22" 3.15” 3.15” 0.43” 0.51” 1.57” 1.38" 0.87” 0.98" 0.27”
100-200 355 225 90 120 68 116 23 140 178 93 178 11 17 45 40 Φ28h6 31.1 7
14" 8.86" 3.54' 4.72" 2.68" 4.57" 0.9" 5.51” 7" 3.66” 3.66” 0.43" 0.67” 0.67” 1.57” 1.1" 1.22” 0.27”

Technical Data Sheet

Product Model Power Rated speed Torque Stop Torque Air consumption


Weight
KW) (HP) (RPM) (Nm)   (Ift. bt) (Nm)  (lft. bt) (L/min) (CFM)

(KG)
AMP2-L/FG3 0.12 0.16 400 2.7 2 5.7 4.2 210 7.4 7.3
AMP2-L/FG5 0.12 0.16 240 4.4 3.2 9.3 6.9 210 7.4 7.3
AMP2-L/FG10 0.12 0.16 120 8.7 6.4 18.4 13.6 210 7.4 7.3
AMP2-L/FG15 0.12 0.16 80 13.1 9.7 27.6 20.4 210 7.4 8.5
AMP2-L/FG25 0.12 0.16 48 21 15.5 44.3 32.7 210 7.4 8.5
AMP2-L/FG30 0.12 0.16 40 25.7 18.5 54 39.9 210 7.4 8.5
AMP2-L/FG50 0.12 0.16 24 42.3 31 88.9 65.6 210 7.4 8.5
AMP2-L/FG90 0.12 0.16 14 75 55.4 151.5 111.8 210 7.4 8.5
AMP2-L/FG100 0.12 0.16 12 81.5 60.1 171 126.2 210 7.4 11.2
AMP2-L/FG150 0.12 0.16 8 122.5 90.4 246.5 181.9 210 7.4 11.2
AMP2-L/FG200 0.12 0.16 6 160.5 118.4 322.5 238 210 7.4 11.2
