The QJH Gaston marine pneumatic winch is a powerful and reliable piece of equipment designed for various marine applications. It operates using compressed air, which makes it suitable for environments where electricity might be hazardous. These winches are known for their durability and low maintenance requirements, featuring robust construction and high-quality components. They can be used for mooring, anchoring, or lifting operations on ships and offshore platforms. The pneumatic system ensures a smooth and controlled operation, with the added benefit of being resistant to corrosion, making it ideal for harsh marine conditions.
DETAIL PARAMETERS

| QJH5 | QJH5D | QJH20 | QJH30 | QJH50 | QJH80 | QJH100 | QJH150 | QJH250 | ||
| Compressed air pressure(Mpa) | 0.6-0.7 | 0.6-0.7 | 0.7-0.8 | 0.7-0.8 | 0.7-0.8 | 0.7-0.8 | 0.7-0.8 | 0.7-0.9 | 0.7-1 | |
| First layer pressure (KN) | 5 | 5 | 20 | 30 | 50 | 80 | 130 | 150 | 250 | |
| Rated speed(m/min) | 48 | 48 | 24 | 24 | 12 | 5 | 6 | 3.5 | 3 | |
| Air motor | Rated power(KW) | 4 | 4 | 12 | 15 | 17 | 30 | 30 | 30 | 30 |
| Number of cylinders | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| roller | Diameter(mm) | Φ175 | Φ175 | Φ230 | F222 | Φ225 | Φ300 | F506 | F522 | Φ720 |
| Width(mm) | 120 | 198 | 335 | 335 | 335 | 620 | 810 | 860 | 860 | |
| Rim diameter(mm) | Φ290 | Φ290 | F465 | F465 | F465 | Φ660 | Φ765 | Φ820 | Φ1150 | |
| Rope capacity (m) | 120 | 120 | 150 | 150 | 150 | 200 | 350 | 200 | 200 | |
| Gas consumption (L/s) | 125 | 125 | 100 | 220 | 245 | 400 | 400 | 400 | 400 | |
| Steel rope diameter (mm) | 8 | 8 | 14 | 16 | 16 | 24 | 24 | 28 | 38 | |

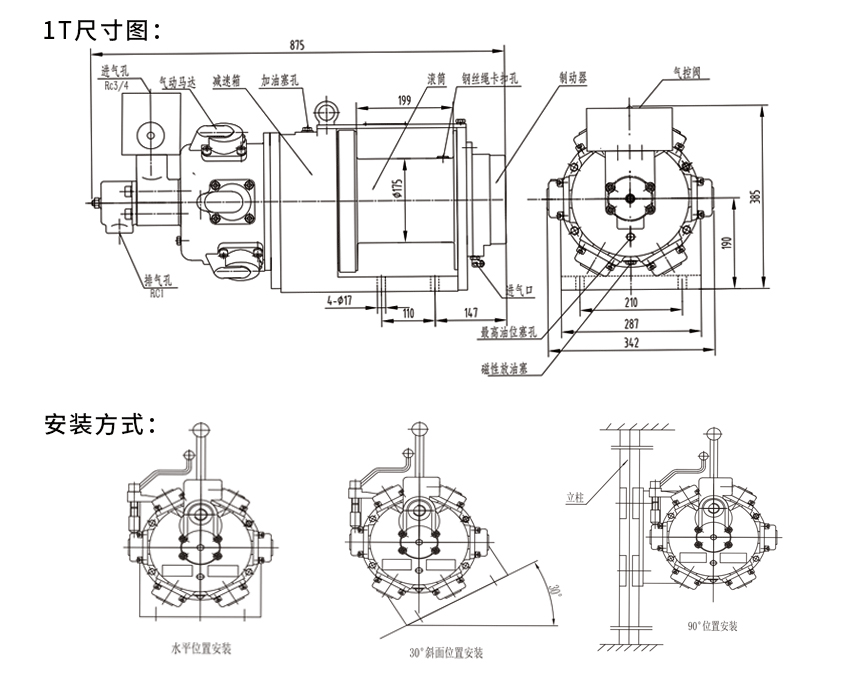

| Dimensions | Length(mm) | 725 | 857 | 1190 | 1210 | 1310 | 1760 | 2280 | 2650 | 2700 |
| Width(mm) | 342 | 342 | 750 | 770 | 770 | 1009 | 1300 | 1400 | 1500 | |
| Height(mm) | 530 | 440 | 790 | 816 | 1016 | 989 | 1250 | 1260 | 1400 | |
| Inlet pipe size | 1 | 1 | 1 | 11/2 | 11/2 | 13/4 | 13/4 | 13/4 | 13/4 | |
| Total weight (excluding wire rope) (kg) | 120 | 130 | 380 | 418 | 420 | 1380 | 1860 | 3900 | 4100 | |
