The QJH Gaston explosion-proof pneumatic winch is a specialized piece of equipment designed for use in hazardous environments where the risk of explosion is high due to the presence of flammable gases, dust, or vapors. This winch operates using compressed air, which is a safer alternative to electrical or hydraulic systems that could potentially ignite a spark or generate heat. The explosion-proof design ensures that even in the event of an internal spark or high temperature, the winch will not cause an explosion in the surrounding environment. It is typically used in industries such as mining, oil and gas, petrochemicals, and any other setting where safety is paramount and the risk of explosion is significant. The QJH Gaston winch is known for its reliability, durability, and compliance with stringent safety standards.
DETAIL PARAMETERS

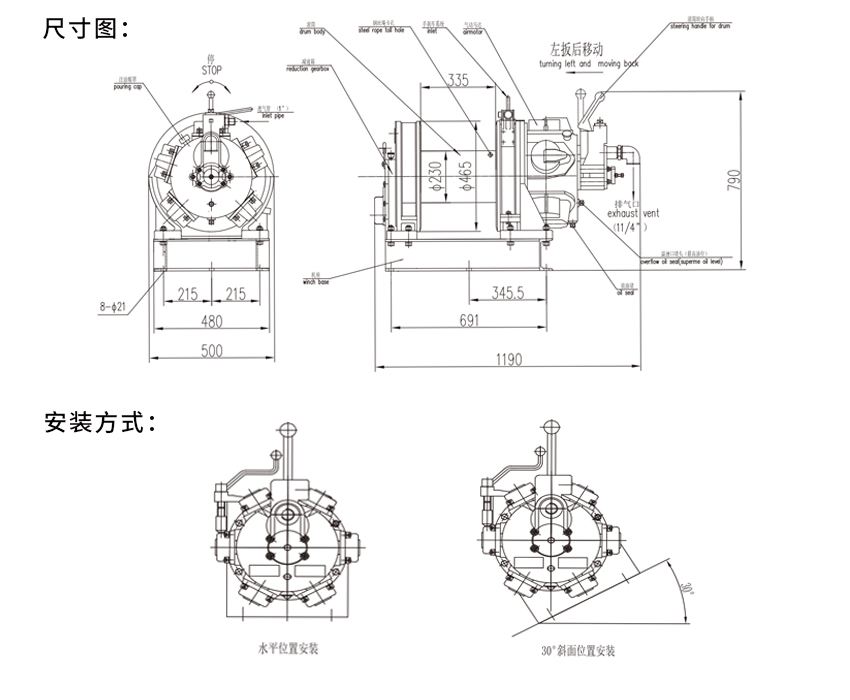

QJH5 | QJH5D | QJH20 | QJH30 | QJH50 | QJH80 | QJH100 | QJH150 | QJH250 | ||
Compressed air pressure(Mpa) | 0.6-0.7 | 0.6-0.7 | 0.7-0.8 | 0.7-0.8 | 0.7-0.8 | 0.7-0.8 | 0.7-0.8 | 0.7-0.9 | 0.7-1 | |
First layer pressure (KN) | 5 | 5 | 20 | 30 | 50 | 80 | 130 | 150 | 250 | |
Rated speed(m/min) | 48 | 48 | 24 | 24 | 12 | 5 | 6 | 3.5 | 3 | |
Air motor | Rated power(KW) | 4 | 4 | 12 | 15 | 17 | 30 | 30 | 30 | 30 |
Number of cylinders | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
roller | Diameter(mm) | Φ175 | Φ175 | Φ230 | F222 | Φ225 | Φ300 | F506 | F522 | Φ720 |
Width(mm) | 120 | 198 | 335 | 335 | 335 | 620 | 810 | 860 | 860 | |
Rim diameter(mm) | Φ290 | Φ290 | F465 | F465 | F465 | Φ660 | Φ765 | Φ820 | Φ1150 | |
Rope capacity (m) | 120 | 120 | 150 | 150 | 150 | 200 | 350 | 200 | 200 | |
Gas consumption (L/s) | 125 | 125 | 100 | 220 | 245 | 400 | 400 | 400 | 400 | |
Steel rope diameter (mm) | 8 | 8 | 14 | 16 | 16 | 24 | 24 | 28 | 38 | |
Dimensions | Length(mm) | 725 | 857 | 1190 | 1210 | 1310 | 1760 | 2280 | 2650 | 2700 |
Width(mm) | 342 | 342 | 750 | 770 | 770 | 1009 | 1300 | 1400 | 1500 | |
Height(mm) | 530 | 440 | 790 | 816 | 1016 | 989 | 1250 | 1260 | 1400 | |
Inlet pipe size | 1 | 1 | 1 | 11/2 | 11/2 | 13/4 | 13/4 | 13/4 | 13/4 | |
Total weight (excluding wire rope) (kg) | 120 | 130 | 380 | 418 | 420 | 1380 | 1860 | 3900 | 4100 |
