Product description:
AMV3.9 vane pneumatic motor product parameters:
Power: 3.9KW, horsepower: 5.2HP, torque: 14.8N.m, free speed: 2500RPM, air consumption: 4800L/min, weight: 10.3-14.9KG (different installation methods, different weights), three installation methods are available: vertical, horizontal, flange, optional manual control valve, brake, gear reducer, controller.
Standard features:
Using compressed air as the power source is safe and explosion-proof. The product has an explosion-proof certificate and meets national safety standards. High speed and high torque will not burn due to overload. The speed is adjusted steplessly. The control valve is used to switch the start, adjustment, and stop, and the forward and reverse directions can be instantly reversed. The motor is designed to be enclosed as a whole and can be used in dusty, humid, and harsh environments. It is widely used in the chemical industry, semiconductors, crystals, petrochemicals, biochemical technology, paint factories, automated machinery, and other industries.
Working environment:
Fluid: Compressed air
Using pressure: 5Kg/cm2 (70psi)
Maximum working pressure: 6Kg/cm2 (85psi)
Ambient temperature: -10°C~+70°C (can only be used in a non-freezing state)
Lubricating oil: IS0VG32 or similar. (It is necessary to add oil with an oil mist, 2~3 drops per minute).
Continuous use: Yes (cannot run continuously without load).
Recommended speed: (0.3~1) x maximum output speed.
DETAIL PARAMETERS
AMV3.9-F
AMV3.9-L
AMV3.9-IEC
Model | Gear Ratio | Date At Max Power | Data At Max Torque | Weight(KG) | ||||||||
Power | Torque | Speed | Air Consumption | Max Torque | Vertical | Horizontal | Flange | |||||
H P | KW | N.m | lbf.ft | rpm | L/min | N.m | lbf.ft | KG | KG | KG | ||
AMV3.9 | 5.2 | 3.9 | 14.8 | 10.7 | 2500 | 4800 | 21 | 15.5 | 10.3 | 10.8 | 14.9 | |
1/3 | 40 | 29.5 | 830 | 55 | 40.6 | 40.9 | 40 | ※ | ||||
1/5 | 65 | 47.9 | 500 | 98 | 72.3 | |||||||
1/10 | 131 | 96.7 | 250 | 203 | 149.8 | |||||||
1/20 | 259 | 191.1 | 125 | 4950 | 402 | 296.7 | ||||||
1/40 | 396 | 377.9 | 80 | 625 | 461.3 | 51.2 | 64.5 | ※ | ||||
1/50 | 628 | 463.4 | 50 | 1017 | 750.5 | |||||||
1/60 | 715 | 527.7 | 40 | 1168 | 862 | |||||||
1/100 | 1275 | 941 | 25 | 2075 | 1531 |

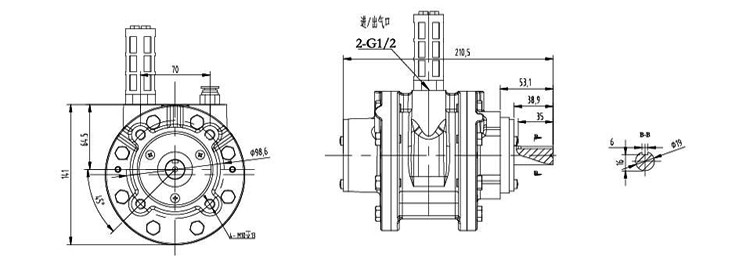

AMV3.9 installation dimensions
![]() |
![]() |
AMV3.9-F Vertical | AMV3.9-L Horizontal |
![]() |
|
AMV3.9-IEC Flange |
NO. | Name | Quantity | NO. | Name | Quantity |
1 | End Cap | 1 | 10 | Motor rotor | 1 |
2 | Drive End Bearing | 1 | 11 | Ejector | 4 |
3 | O-ring | 2 | 12 | Leaf Spring | 4 |
4 | Drive End Bearing | 1 | 13 | Blade | 4 |
5 | Dowel Pin | 2 | 14 | Motor cover | 1 |
6 | Drive End Plate | 1 | 15 | Bearing | 1 |
7 | Body Gasket | 2 | 16 | Cover cap | 1 |
8 | Vane Spring | 4 | 17 | Motor cover | 1 |
9 | Key sales | 1 |
