GT60S product parameters:

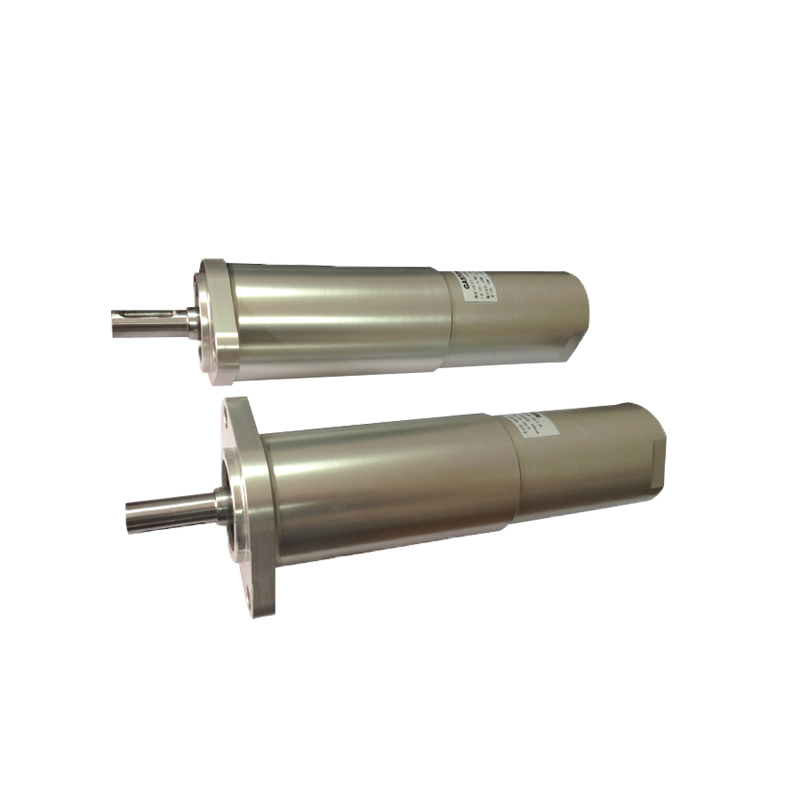

GT60S planetary pneumatic motor, with built-in reducer, multiple speed ratios available, power: 0.58-0.84KW, horsepower: 0.78-1.13HP, torque: 1.7-275N.m, free speed: 7000-40RPM, gas consumption: 18L/S, weight: 1.0-11.0KG (different reduction ratios, different weights), four installation methods available: flangeless installation, diamond flange type, round flange type, horizontal type, output shaft can be key pin shaft, flat shaft, threaded shaft, shell material optional: aluminum alloy material, carbon steel shell, stainless steel shell, rotation direction optional: bidirectional, unidirectional right-handed, unidirectional left-handed.
Standard features:
Using compressed air as the power source, it is safe and explosion-proof and meets national safety standards. It can be started at low pressure, has low gas consumption, high precision, precise positioning, simple and compact appearance, can be started frequently, frequently stopped, and has simple maintenance. It can be used for various machines and machinery: automation machinery, packaging machinery, capping machines, food and beverage machinery, mixers, filling machines, printing machinery, machine tools, pipe dredging machines, machines for flammable and explosive environments, beveling machines, balers, paper making machinery, material handling production lines, petroleum machinery, assembly production line tightening units, conveying equipment, indexing tables, cutting equipment, tapping machines, ship machinery, woodworking machinery, mining machinery, petrochemical machinery, etc. It can be used with various functional mechanisms and systems: CNC systems, propulsion mechanisms, positioning systems, robots or manipulators, torque control systems, speed control systems, various sensors, etc. Gaston pneumatic motors have been widely used in industrial automation.
Working environment:
Fluid used: compressed air
Working pressure: 5Kg/cm2 (70psi)
Maximum working pressure: 6Kg/cm2 (85psi)
Ambient temperature: -10°C~+70°C (can only be used in a non-freezing state)
Lubricating oil: IS0VG32 or similar. (It is necessary to oil with an oil mist, 2~3 drops per minute).
Continuous use: Yes (cannot run continuously without load).
Recommended speed: (0.3~1) x maximum output speed.
DETAIL PARAMETERS
Nabe | Type | Power | Horsepower | Speed | Torque | Air Consumption | Rotation | Weight | Input Hose (mm) Size | |||||
Free Speed | At Max. HP | Max. Torque | Max. Static Torque | |||||||||||
KW | H P | rpm/min | rpm/min | Nm | Ibf.ft | Nm | lbf.ft | L/S | CFM | KG | ||||
GT60S | GT60-070 | 0.58-0.84 | 0.78-1.13 | 7000 | 3500 | 1.7 | 1.3 | 2 | 1.5 | 18 | 38.7 | Bidirectional | 1 | 14 |
GT60-0270 | 2790 | 1300 | 6 | 4.4 | 10 | 7.4 | 18 | 38.7 | Bidirectional | 1.9 | 14 | |||
GT60-0180 | 1830 | 850 | 9 | 6.6 | 15 | 11.1 | 18 | 38.7 | Bidirectional | 1.9 | 14 | |||
GT60-00580 | 580 | 270 | 28 | 20.7 | 48 | 35.4 | 18 | 38.7 | Bidirectional | 2.2 | 14 | |||
GT60-00480 | 480 | 225 | 34 | 25.1 | 58 | 42.8 | 18 | 38.7 | Bidirectional | 2.2 | 14 | |||
GT60-00320 | 320 | 150 | 50 | 36.9 | 88 | 64.9 | 18 | 38.7 | Bidirectional | 2.2 | 14 | |||
GT60-00250 | 250 | 110 | 68 | 50.2 | 112 | 82.7 | 18 | 38.7 | Bidirectional | 5.2 | 14 | |||
GT60-00095 | 95 | 50 | 115 | 84.9 | 168 | 124 | 18 | 38.7 | Bidirectional | 6 | 14 | |||
GT60-00040 | 40 | 20 | 275 | 203 | 300 | 221.4 | 18 | 38.7 | Bidirectional | 11 | 14 |
