The QJH Gaston lifting pneumatic winch is a powerful and versatile piece of equipment designed for various lifting and pulling applications. It operates using compressed air, which makes it suitable for environments where electricity is not available or could pose a risk, such as on construction sites or in chemical plants. These winches are known for their durability, reliability, and ease of use. They feature a robust design with a high-quality pneumatic motor that ensures efficient and safe operation. The winch can handle heavy loads with precision, making it ideal for industrial use. Maintenance is also relatively simple, contributing to its low operating costs. Overall, the QJH Gaston pneumatic winch is a reliable tool for heavy-duty lifting tasks.
DETAIL PARAMETERS

| QJH5 | QJH5D | QJH20 | QJH30 | QJH50 | QJH80 | QJH100 | QJH150 | QJH250 | ||
| Compressed air pressure(Mpa) | 0.6-0.7 | 0.6-0.7 | 0.7-0.8 | 0.7-0.8 | 0.7-0.8 | 0.7-0.8 | 0.7-0.8 | 0.7-0.9 | 0.7-1 | |
| First layer pressure (KN) | 5 | 5 | 20 | 30 | 50 | 80 | 130 | 150 | 250 | |
| Rated speed(m/min) | 48 | 48 | 24 | 24 | 12 | 5 | 6 | 3.5 | 3 | |
| Air motor | Rated power(KW) | 4 | 4 | 12 | 15 | 17 | 30 | 30 | 30 | 30 |
| Number of cylinders | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| roller | Diameter(mm) | Φ175 | Φ175 | Φ230 | F222 | Φ225 | Φ300 | F506 | F522 | Φ720 |
| Width(mm) | 120 | 198 | 335 | 335 | 335 | 620 | 810 | 860 | 860 | |
| Rim diameter(mm) | Φ290 | Φ290 | F465 | F465 | F465 | Φ660 | Φ765 | Φ820 | Φ1150 | |
| Rope capacity (m) | 120 | 120 | 150 | 150 | 150 | 200 | 350 | 200 | 200 | |
| Gas consumption (L/s) | 125 | 125 | 100 | 220 | 245 | 400 | 400 | 400 | 400 | |
| Steel rope diameter (mm) | 8 | 8 | 14 | 16 | 16 | 24 | 24 | 28 | 38 | |

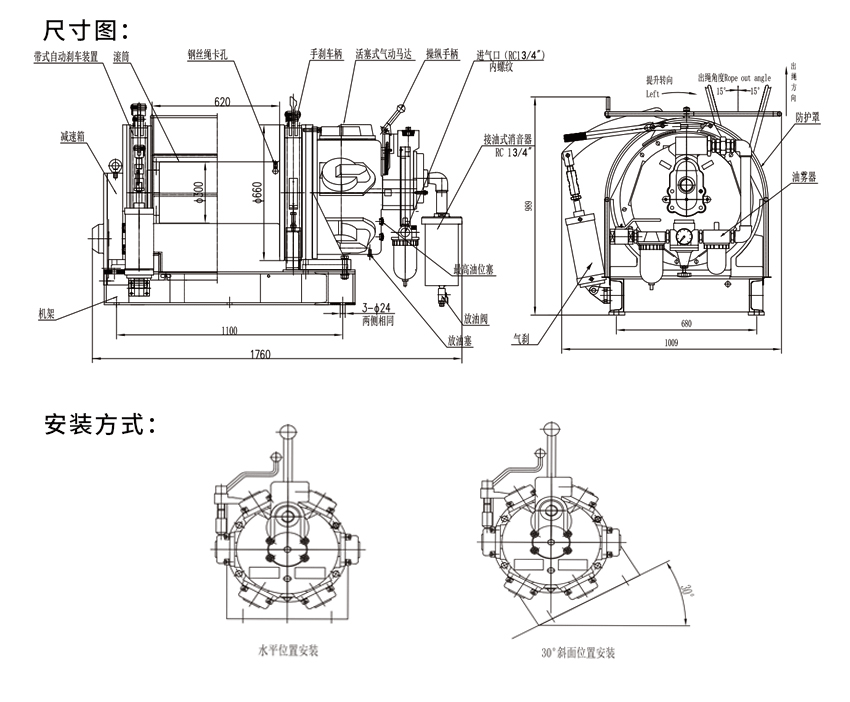

| Dimensions | Length(mm) | 725 | 857 | 1190 | 1210 | 1310 | 1760 | 2280 | 2650 | 2700 |
| Width(mm) | 342 | 342 | 750 | 770 | 770 | 1009 | 1300 | 1400 | 1500 | |
| Height(mm) | 530 | 440 | 790 | 816 | 1016 | 989 | 1250 | 1260 | 1400 | |
| Inlet pipe size | 1 | 1 | 1 | 11/2 | 11/2 | 13/4 | 13/4 | 13/4 | 13/4 | |
| Total weight (excluding wire rope) (kg) | 120 | 130 | 380 | 418 | 420 | 1380 | 1860 | 3900 | 4100 | |
