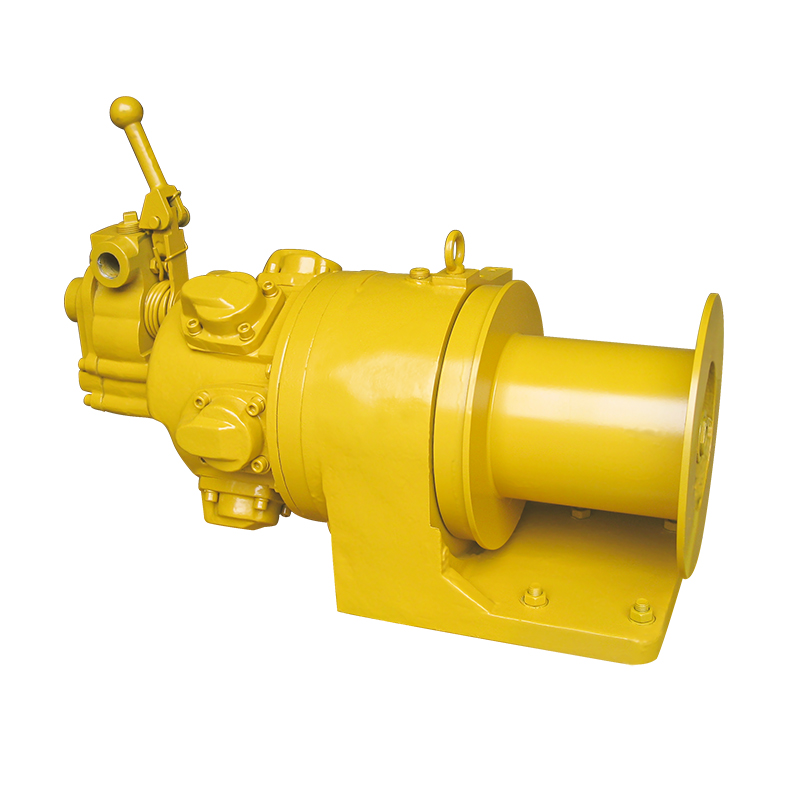

The QJH Gaston lifting explosion-proof winch is a specialized piece of equipment designed for use in potentially explosive environments, such as those found in the chemical, petrochemical, and mining industries. This winch features an explosion-proof design to prevent ignition of flammable gases, vapors, or dust that may be present in the atmosphere. It is engineered to meet stringent safety standards and is typically constructed with non-sparking materials to further reduce the risk of ignition. The winch is also built to handle heavy loads and is equipped with advanced control systems for reliable and efficient lifting operations. Its robust construction ensures durability and long service life, making it a valuable asset for hazardous work environments.
DETAIL PARAMETERS
QJH5 | QJH5D | QJH20 | QJH30 | QJH50 | QJH80 | QJH100 | QJH150 | QJH250 | ||
Compressed air pressure(Mpa) | 0.6-0.7 | 0.6-0.7 | 0.7-0.8 | 0.7-0.8 | 0.7-0.8 | 0.7-0.8 | 0.7-0.8 | 0.7-0.9 | 0.7-1 | |
First layer pressure (KN) | 5 | 5 | 20 | 30 | 50 | 80 | 130 | 150 | 250 | |
Rated speed(m/min) | 48 | 48 | 24 | 24 | 12 | 5 | 6 | 3.5 | 3 | |
Air motor | Rated power(KW) | 4 | 4 | 12 | 15 | 17 | 30 | 30 | 30 | 30 |
Number of cylinders | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
roller | Diameter(mm) | Φ175 | Φ175 | Φ230 | F222 | Φ225 | Φ300 | F506 | F522 | Φ720 |
Width(mm) | 120 | 198 | 335 | 335 | 335 | 620 | 810 | 860 | 860 | |
Rim diameter(mm) | Φ290 | Φ290 | F465 | F465 | F465 | Φ660 | Φ765 | Φ820 | Φ1150 | |
Rope capacity (m) | 120 | 120 | 150 | 150 | 150 | 200 | 350 | 200 | 200 | |
Gas consumption (L/s) | 125 | 125 | 100 | 220 | 245 | 400 | 400 | 400 | 400 | |
Steel rope diameter (mm) | 8 | 8 | 14 | 16 | 16 | 24 | 24 | 28 | 38 | |
Dimensions | Length(mm) | 725 | 857 | 1190 | 1210 | 1310 | 1760 | 2280 | 2650 | 2700 |
Width(mm) | 342 | 342 | 750 | 770 | 770 | 1009 | 1300 | 1400 | 1500 | |
Height(mm) | 530 | 440 | 790 | 816 | 1016 | 989 | 1250 | 1260 | 1400 | |
Inlet pipe size | 1 | 1 | 1 | 11/2 | 11/2 | 13/4 | 13/4 | 13/4 | 13/4 | |
Total weight (excluding wire rope) (kg) | 120 | 130 | 380 | 418 | 420 | 1380 | 1860 | 3900 | 4100 |
