Custom AMP5 Gaston piston pneumatic motor

Anhui Gaston Precision Machinery Co, Ltd. Home / Product / Pneumatic Motor Series / Piston Pneumatic Motor / AMP5 Gaston piston pneumatic motor
  • AMP5 Gaston piston pneumatic motor
  • AMP5 Gaston piston pneumatic motor
  • AMP5 Gaston piston pneumatic motor
  • AMP5 Gaston piston pneumatic motor

AMP5 Gaston piston pneumatic motor

AMP5 product parameters:
Power: 0.37KW, horsepower: 0.5HP, torque: 4.7N.m, free speed: 1200RPM, gas consumption: 395L/min, weight: 5.2-5.7KG (different installation methods, different weights), four installation methods are available: basic, vertical, horizontal, flange, optional manual control valve, brake, gear reducer, controller.

Standard features:
Using compressed air as the power source for safety and explosion-proof, the product has an explosion-proof certificate and meets national safety standards. High torque, low gas consumption, will not burn due to overload, speed step-less adjustment, start, adjust, stop by control valve switching, can instantly reverse the direction. The motor is designed to be enclosed as a whole and can be used in dusty, humid, and harsh environments. Widely used in the chemical industry, semiconductors, crystals, petrochemicals, biochemical technology, paint factories, automated machinery, and other industries.

Working environment:
Fluid: Compressed air
Using pressure: 5Kg/cm2 (70psi)
Maximum working pressure: 6Kg/cm2 (85psi)
Ambient temperature: -10°C~+70°C (can only be used in a non-freezing state)
Lubricating oil: IS0VG32 or similar. (It is necessary to add oil with an oil mist, 2~3 drops per minute).
Continuous use: Yes (cannot run continuously without load).
Recommended speed: (0.3~1) x maximum output speed.

  • DETAIL PARAMETERS

Model Gear Ratio Maximum Output Stall Torque Weight(KG)
Power Torque Rated Speed Air consumption Basic Vertical Horizontal
HP KW N.m Ibf. ft R.P. Mmin L/min CFM N.m Ibf. ft KG KG KG
AMP5 0.5 0.37 4.7 3.5 750 395 13.9 6.5 5.5 5.2 5.5 5.7
G1/3 13.3 9.8 250 17.8 13.1 " 11.9 12.1
G1/5 22 16.2 150 29.6 21.8
G1/10 43.5 32.1 75 59 43.5
G1/15 64.3 47.5 50 86.7 64 " 14.5 14.8
G1/20 87.2 64.4 37.5 119.5 88.2
G1/30 129.5 95.6 25 178.9 132
G1/40 171 126.2 18.5 236.1 174.2
G1/50 213.5 157.6 15 296.8 219
G1/60 256.2 189.1 12.5 358.8 264.8
G1/80 338.1 249.5 9 524.2 386.9

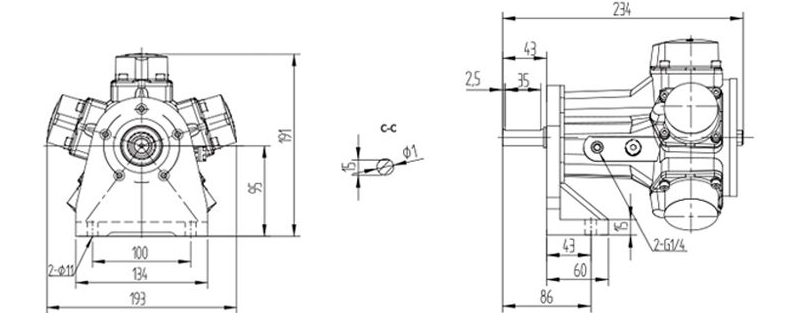

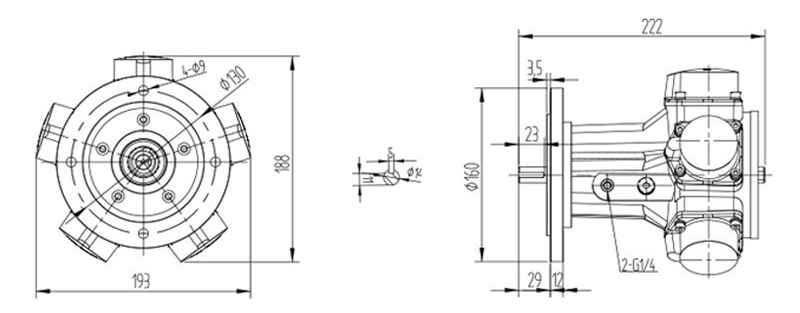

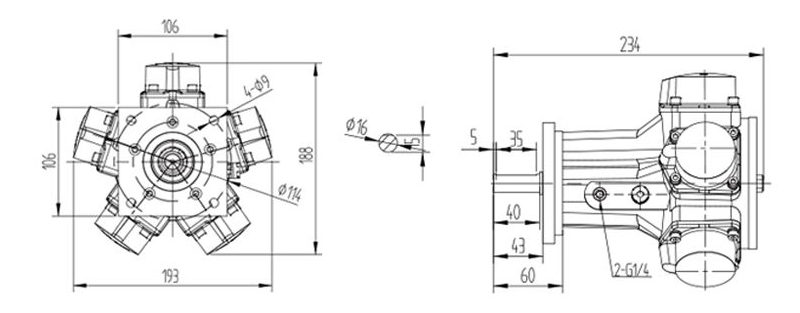

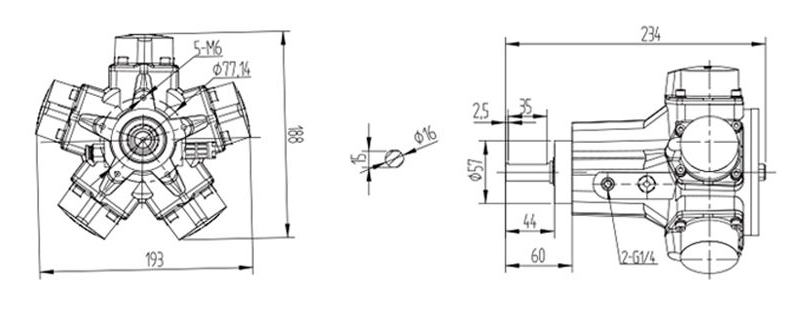

Schematic plan view:

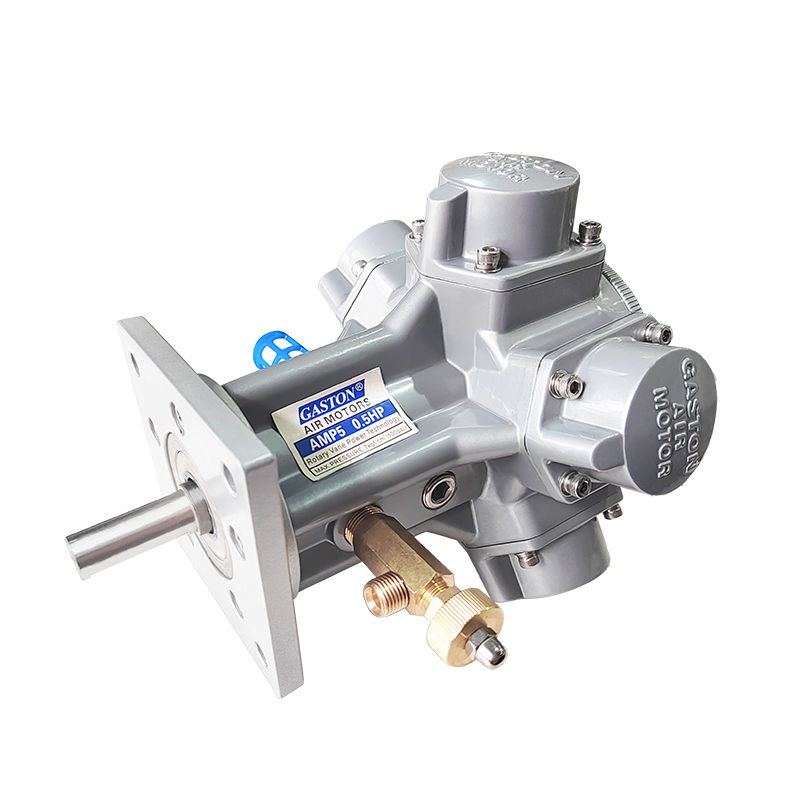

AMP5-T(Basic type) AMP5-F(Vertical)

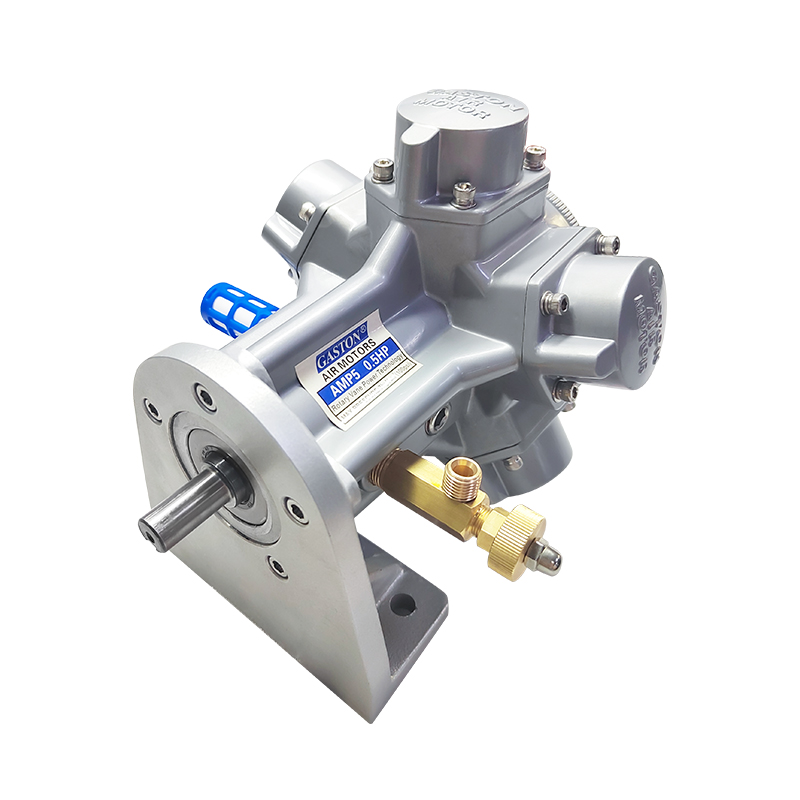

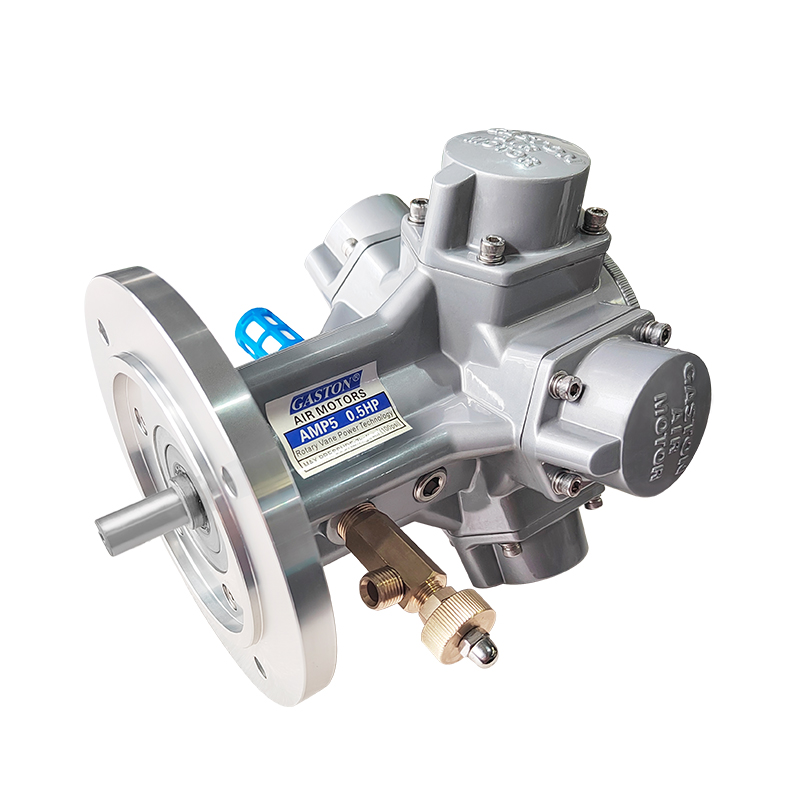

AMP5-L(Horizontal) AMP5-IEC(Flange type)

Product breakdown diagram:

NO. Name Quantity NO. Name Quantity NO. Name Quantity
1 Housing 1 12 Gasket 5 23 O-rings 1
2 Distributing valve 1 13 Body Gasket 2 24 The motor cover 1
3 Drive End Bearing 1 14 O-rings 2 25 Round flange 1
4 The spindle 1 15 Roller bearing 1 26 Vent screw 1
5 Shalf Seal 1 16 Crankshaft screw 1 27 Square flange 2
6 Hole card spring 1 17 Cylinder liner 5 28 Horizontal plate 1
7 Drive End Bearing 1 18 O-rings 5 29 Muffler 1
8 Circlip 1 19 Cylinder head 5 30 Tracheal plug 1
9 Piston 5 20 O-rings 5 31 Plug 2
10 Connecting rod 5 21 Spring washer 20
11 Stop pin 5 22 Socket head screw 20
PREV: AMP4 Gaston small piston pneumatic motor
NEXT: AMP6 Gaston Low Speed Air Motor
