Product description:
AMC4.2 gear pneumatic motor product parameters:
Power: 4.2KW, horsepower: 4.6HP, torque: 11N.m, free speed: 5900RPM, air consumption: 4500L/min, weight: 18.5KG (different installation methods, different weights), three installation methods are available: vertical, horizontal, disc type, optional manual control valve, brake, gear reducer, controller.
Standard features:
Using compressed air as the power source is safe and explosion-proof. The product has an explosion-proof certificate and meets national safety standards. High speed and high torque will not burn due to overload. The speed is adjusted steplessly. The control valve is used to switch the start, adjustment, and stop, and the forward and reverse directions can be reversed instantly. The motor is designed to be enclosed as a whole and can be used in dusty, humid, and harsh environments. It is widely used in the chemical industry, semiconductors, crystals, petrochemicals, biochemical technology, paint factories, automation machinery, and other industries.
Working environment:
Fluid: Compressed air
Using pressure: 5Kg/cm2 (70psi)
Maximum working pressure: 6Kg/cm2 (85psi)
Ambient temperature: -10°C~+70°C (can only be used in a non-freezing state)
Lubricating oil: IS0VG32 or similar. (It is necessary to add oil with an oil mist, 2~3 drops per minute).
Continuous use: Yes (cannot run continuously without load).
Recommended speed: (0.3~1) x maximum output speed.
DETAIL PARAMETERS
Model | Working pressure (Mpa) | Power | Speed | Torque | Air Consumption | Rotation | Weight(KG) | Input Hose(mm) Size | |||||
Free Speed | At Max. HP | Max.Torque | |||||||||||
HP | KW | rpm/min | Nm | Ibf. ft | L/MIN | CFM | Vertical | Horizontal | |||||
AMC4.2 | 0.4 | 3.3 | 2 | 5200 | 2700 | 7 | 5.2 | 3480 | 122.9 | Bidirectional | 18.5 | 18.5 | 20 |
0.5 | 4 | 2.5 | 5650 | 2850 | 8.3 | 6.1 | 4200 | 148.3 | |||||
0.6 | 4.6 | 3.5 | 5900 | 3100 | 11 | 8.1 | 4500 | 158.9 | |||||
0.7 | 5.3 | 4.5 | 6100 | 3200 | 13.5 | 10 | 4720 | 166.7 |

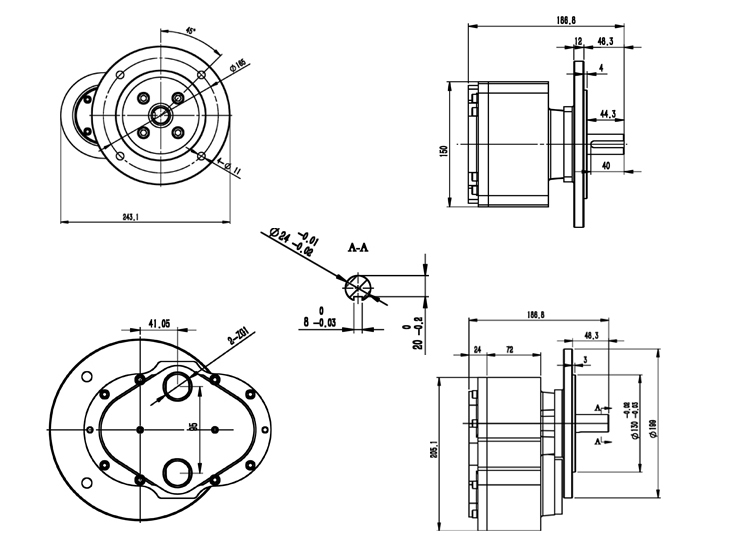

Schematic plan view:

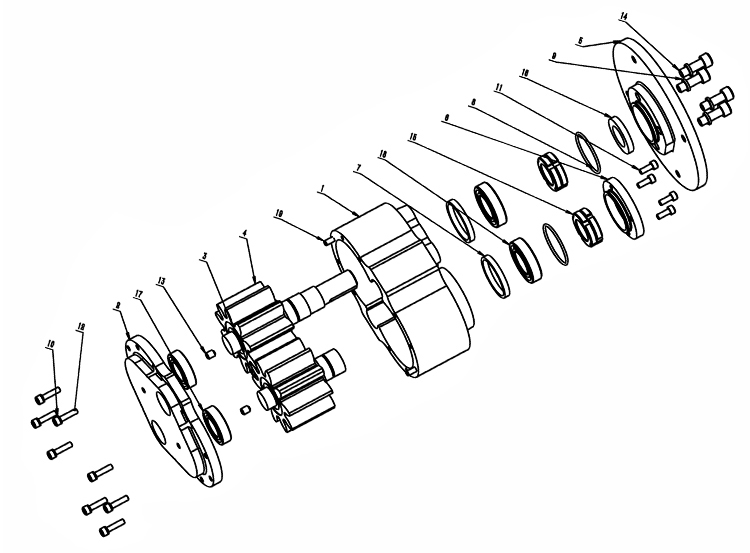

Product breakdown diagram:
NO. | Name | Quantity | NO. | Name | Quantity |
1 | Motor housing | 1 | 11 | Hexagon socket screw | 4 |
2 | Motor rear cover | 1 | 12 | Hexagon socket screw | 8 |
3 | Motor slave gear | 1 | 13 | Flat point set screw | 2 |
4 | Motor main gear | 1 | 14 | Hexagon socket bolt with a cylindrical head | 4 |
5 | Round flange | 1 | 15 | Round nut | 4 |
6 | Front cover | 1 | 16 | Grease seal | 1 |
7 | Joint ring | 2 | 17 | Deep groove ball bearing | 2 |
8 | O-rings | 2 | 18 | Deep groove ball bearing | 2 |
9 | Spring washer | 4 | 19 | Straight pin | 2 |
10 | Spring washer | 8 |
