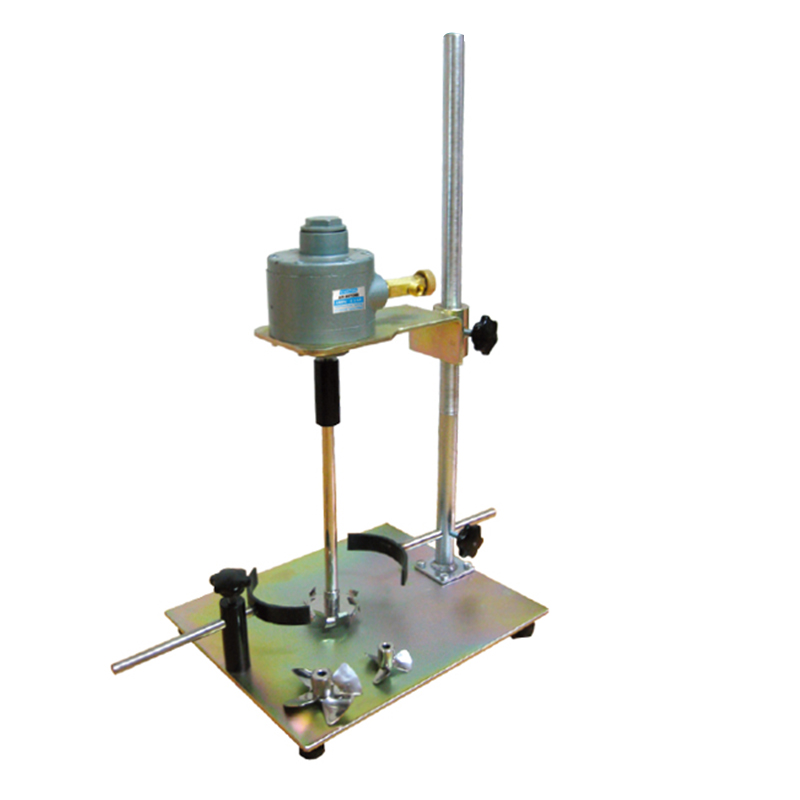

SY-B1 Gaston paint-proofing mixer is an efficient equipment specially designed for mixing in laboratories and small amounts of solvents. It uses a galvanized frame to ensure the sturdiness and durability of the equipment. At the same time, the shaft and blades can be selected according to specific needs, providing a high degree of flexibility. This mixer is especially suitable for color mixing in paint factories, chemical laboratories, and other occasions to ensure uniform mixing of paint and other solvents to meet various proofing needs. SY-B1's compact design and easy operation make it in paint-proofing work and is an indispensable piece of equipment in laboratories and small production environments.

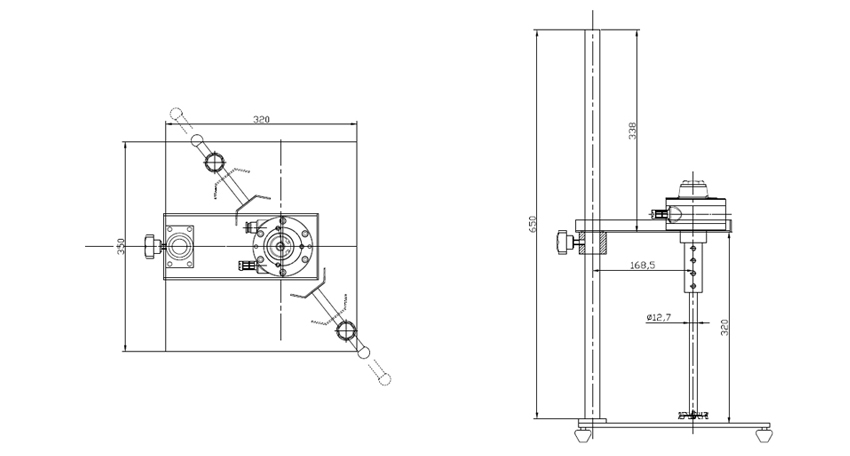

DETAIL PARAMETERS

|
Motor Type |
Motor Model |
Horsepower |
Axis size (stainless steel) |
Blade (stainless steel) |
Blade type |
|
Piston motor |
AMP2 |
0.18HP |
Φ12.7mm×220mm |
21/2"×1 |
Optional: stirring blade, dispersion disc. |
|
AMP3 |
0.25HP |
Φ12.7mm×220mm |
21/2"×1 |
||
|
Blade motor |
AMV0.68 |
0.9HP |
Φ12.7mm×220mm |
21/2"×1 |
|
|
AMV1.3 |
1.70HP |
Φ12.7mm×220mm |
21/2"×1 |
||
|
Manufactured for customized requirements. |
|||||
