Precision Pneumatic Cylinder Motor 50mm Stroke 600RPM No-Load | 4L/S Air Consumption | Dust-Proof Integrated

Product definition:
GT36 cylinder motor
It is a compact planetary reduction pneumatic motor with a telescopic cylinder. It adopts an integrated mechanism design, a rated speed of 600RPM, an output torque of 7N·m, and can run stably under an air pressure of 0.7MPa. The front end of the motor and the cylinder adopt a dust cover sealing structure to effectively isolate dust and impurities from intrusion, and is suitable for harsh industrial environments with high dust and high humidity.
Product features:
Precision planetary reduction mechanism
Built-in high-precision planetary gear set, transmission efficiency of 92%, 30% increase in torque compared to ordinary gear motors, smoother operation, suitable for high-load start-stop scenarios.

Multiple protection design
The front dust cover is made of wear-resistant polyurethane material, combined with a labyrinth air seal structure, with a protection level of IP65, effectively extending the life of bearings and gears.

Intelligent air pressure adaptation
Automatically adjust the air consumption (4L/S), maintain 350-600RPM precise speed control within the pressure range of 0.5-0.7MPa, and avoid output instability caused by air pressure fluctuations.

Product use:
Automated production line positioning drive
Specially optimized for industrial automation scenarios, suitable for:
Assembly robot arm joint drive: 7N·m torque meets the requirements of precision parts grasping and positioning, and the dust-proof design adapts to the clean environment of the electronic workshop.

Packaging line reciprocating push mechanism: 600RPM high-speed idling lifting rhythm, 50mm stroke accurately controls the material conveying position.

  • DETAIL PARAMETERS

Parameter (English) Value
Product Name Planetary Pneumatic Motor
Product Brand GASTON
Telescopic stroke  S-50mm
Rated air pressure  0.7MPa
Air consumption  4L/S
Idling speed  600r/min
Rated speed  350r/min
Output torque  7N.m

Nabe Type Power Horsepower Speed Torque Air Consumption Rotation Weight Input Hose (mm) Size
Free Speed At Max. HP Max. Torque Max. Static Torque
KW H P rpm/min rpm/min Nm Ibf.ft Nm lbf.ft L/S CFM KG
GT27S GT36S-138 0.16-0.25 0.22-0.34 13800 6500 0.2 0.2 0.4 0.3 5 11 Bidirectional 0.85 8
GT36S-030 300 1400 1.1 0.8 1.3 1 5 11 Bidirectional 0.85 8
GT36S-21 2100 1000 1.5 1.1 1.8 1.3 5 11 Bidirectional 0.85 8
GT36S-13 1350 650 2.4 1.8 3 2.2 6 11 Bidirectional 0.85 8
GT36S-070 680 320 5 3.7 6 4.4 7 11 Bidirectional 0.85 8
GT36S-050 500 240 7 5.2 8 5.9 8 11 Bidirectional 0.85 8
GT36S-0030 300 140 10.8 8 13.5 10 9 11 Bidirectional 0.85 8

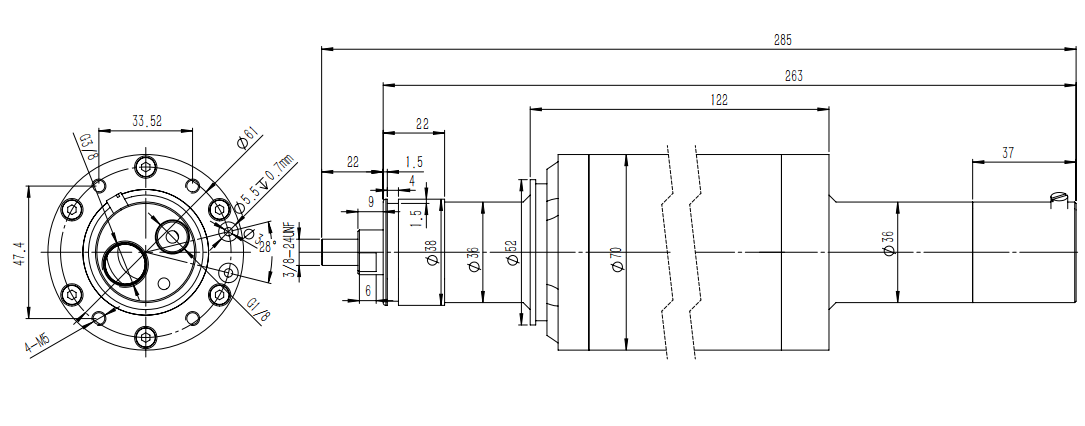

Product Dimensions:
