Product definition:
Planetary reduction motor with blackened steel shell, nitriding and hardening treatment on the surface, with 7Nm output torque and 350RPM rated speed as the core, supports instantaneous torque compensation when the load changes suddenly. The shell is phosphating and blackening to form a dense oxide layer, and the anti-scratch performance is improved by 200%. It is designed for high wear conditions such as cleaning of hydraulic valve blocks of mining machinery and slag removal of building steel pipes. Built-in overload protection mechanism, super impact resistance
Product features:
Super hard and wear-resistant surface
The surface hardness of the nitriding blackening treatment is enhanced, which can withstand the impact of ore particles, and the wear resistance is increased by 8 times in the cleaning scene of mining machinery.
Self-sealing blades
The blades can self-seal and automatically compensate for their wear to ensure that they can have constant output during long-term use;
Will not burn out due to overload
Electric motors often burn out due to stalling, and pneumatic motors will not be damaged in the case of long-term stalling or overload
Product use:
Mining machinery maintenance: crusher lubrication pipeline dredging, ore dressing equipment hydraulic valve cleaning, nitriding blackening surface anti-ore scratching
Building infrastructure cleaning: concrete pump truck delivery pipe caking removal, shield machine mud pipeline recoil, excellent wear resistance.
DETAIL PARAMETERS
Parameter (English) | Value |
Product Name | Planetary Pneumatic Motor |
Product Brand | GASTON |
Product Model | GT36DL-T-K-AL |
Working Fluid | Compressed Air |
Working Pressure | 0.63 MPa |
Power | 0.25 KW |
Torque | 7 N.m |
Rated Speed | 320 rpm/min |
Air Consumption | 4 L/min |
Free Speed | 680 rpm/min |
Operating Temperature | -10~70°C |
Weight | 0.65 KG |
Rotation Direction | Unidirectional Right Rotation |
Nabe | Type | Power | Horsepower | Speed | Torque | Air Consumption | Rotation | Weight | Input Hose (mm) Size | |||||
Free Speed | At Max. HP | Max. Torque | Max. Static Torque | |||||||||||
KW | H P | rpm/min | rpm/min | Nm | Ibf.ft | Nm | lbf.ft | L/S | CFM | KG | ||||
GT27S | GT36S-138 | 0.16-0.25 | 0.22-0.34 | 13800 | 6500 | 0.2 | 0.2 | 0.4 | 0.3 | 5 | 11 | Bidirectional | 0.85 | 8 |
GT36S-030 | 300 | 1400 | 1.1 | 0.8 | 1.3 | 1 | 5 | 11 | Bidirectional | 0.85 | 8 | |||
GT36S-21 | 2100 | 1000 | 1.5 | 1.1 | 1.8 | 1.3 | 5 | 11 | Bidirectional | 0.85 | 8 | |||
GT36S-13 | 1350 | 650 | 2.4 | 1.8 | 3 | 2.2 | 6 | 11 | Bidirectional | 0.85 | 8 | |||
GT36S-070 | 680 | 320 | 5 | 3.7 | 6 | 4.4 | 7 | 11 | Bidirectional | 0.85 | 8 | |||
GT36S-050 | 500 | 240 | 7 | 5.2 | 8 | 5.9 | 8 | 11 | Bidirectional | 0.85 | 8 | |||
GT36S-0030 | 300 | 140 | 10.8 | 8 | 13.5 | 10 | 9 | 11 | Bidirectional | 0.85 | 8 |

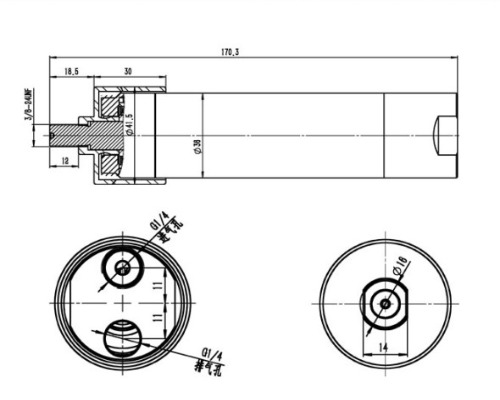

Schematic plan view: Product breakdown diagram:
NO. | Name (English) | Quantity | NO. | Name (English) | Quantity |
1 | Felt washers | 1 | 12 | Housing front cover | 1 |
2 | Cylindrical pins | 4 | 13 | Housing | 1 |
3 | Deep groove ball bearings | 4 | 14 | Air intake cover | 1 |
4 | Deep groove ball bearings | 1 | 15 | Rotor | 1 |
5 | Deep groove ball bearings | 1 | 16 | Motor rear end cover | 1 |
6 | Elastic cylindrical pin | 1 | 17 | Motor front cover | 1 |
7 | Elastic cylindrical pin | 1 | 18 | Stator | 1 |
8 | Level 1 planetary carrier | 1 | 19 | Gasket | 1 |
9 | Out-shaft planetary carrier | 1 | 20 | Grade 1 planetary gear | 2 |
10 | Blade | 5 | 21 | Ring gear | 1 |
11 | Bearing cap | 1 | 22 | Secondary planetary gears | 2 |
