Aluminum Alloy Housing GASTON Cleaning Motor - 7Nm Torque Anti-Corrosion

Product definition:
Lightweight planetary pneumatic power core, aluminum alloy shell is hard anodized, while maintaining 7Nm peak torque output, the weight of the whole machine is reduced by 42% (only 1.0kg). 350RPM rated speed with stepless speed regulation function, perfect for mobile gun cleaning operation vehicles and high-altitude cleaning platforms. It can operate continuously for 8 hours without frequency reduction, becoming an ideal driving solution for high-frequency mobile scenarios such as online cleaning of food machinery and maintenance of automobile production lines.
Product features:
Lightweight mobile solution
The aluminum alloy shell is heat-treated and weighs only 1.0kg (55% lighter than the steel shell), which is suitable for handheld gun cleaning equipment to reduce operator fatigue.

Efficient heat dissipation structure
Internal guide air duct, the body temperature is always below 65℃ during continuous operation, eliminating thermal attenuation.

Accurate speed regulation response
0-600RPM stepless speed change is completed within 0.3 seconds, matching different cleaning needs, and the flow fluctuation rate is <5%.
Product use:
Lightweight mobile equipment: suitable for handheld gun cleaners and aerial work platform cleaning systems, 40% lighter than steel shells, reducing operator fatigue.
Automated production line integration: used for food packaging machinery and electronic component assembly lines, with a compact structure and suitable for installation in small spaces.

  • DETAIL PARAMETERS

Parameter (English) Value
Product Name Planetary Pneumatic Motor
Product Brand GASTON
Product Model GT36DL-T-K-AL
Working Fluid Compressed Air
Working Pressure 0.63 MPa
Power 0.25 KW
Torque 7 N.m
Rated Speed 320 rpm/min
Air Consumption 4 L/min
Free Speed 680 rpm/min
Operating Temperature -10~70°C
Weight 0.65 KG
Rotation Direction Unidirectional Right Rotation
Nabe Type Power Horsepower Speed Torque Air Consumption Rotation Weight Input Hose (mm) Size
Free Speed At Max. HP Max. Torque Max. Static Torque
KW H P rpm/min rpm/min Nm Ibf.ft Nm lbf.ft L/S CFM KG
GT27S GT36S-138 0.16-0.25 0.22-0.34 13800 6500 0.2 0.2 0.4 0.3 5 11 Bidirectional 0.85 8
GT36S-030 300 1400 1.1 0.8 1.3 1 5 11 Bidirectional 0.85 8
GT36S-21 2100 1000 1.5 1.1 1.8 1.3 5 11 Bidirectional 0.85 8
GT36S-13 1350 650 2.4 1.8 3 2.2 6 11 Bidirectional 0.85 8
GT36S-070 680 320 5 3.7 6 4.4 7 11 Bidirectional 0.85 8
GT36S-050 500 240 7 5.2 8 5.9 8 11 Bidirectional 0.85 8
GT36S-0030 300 140 10.8 8 13.5 10 9 11 Bidirectional 0.85 8

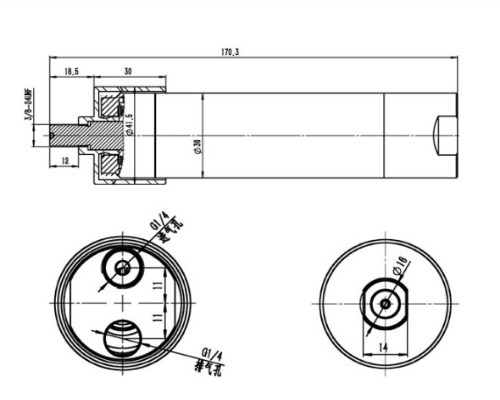

Schematic plan view:                                                                                                   Product breakdown diagram:



NO. Name (English) Quantity NO. Name (English) Quantity
1 Felt washers 1 12 Housing front cover 1
2 Cylindrical pins 4 13 Housing 1
3 Deep groove ball bearings 4 14 Air intake cover 1
4 Deep groove ball bearings 1 15 Rotor 1
5 Deep groove ball bearings 1 16 Motor rear end cover 1
6 Elastic cylindrical pin 1 17 Motor front cover 1
7 Elastic cylindrical pin 1 18 Stator 1
8 Level 1 planetary carrier 1 19 Gasket 1
9 Out-shaft planetary carrier 1 20 Grade 1 planetary gear 2
10 Blade 5 21 Ring gear 1
11 Bearing cap 1 22 Secondary planetary gears 2
