Product Definition Introduction:
The planetary reduction pneumatic motor for GASTON/TBI gun cleaning system adopts a fully sealed 304 stainless steel shell structure. Based on the 7Nm constant output torque and 350RPM rated speed, it supports 0-350RPM stepless air control speed regulation. The shell is made of stainless steel and can withstand acid and alkali solvent flushing and high-pressure steam environment for a long time. It is particularly suitable for strong corrosion scenes such as chemical plant pipeline descaling and electroplating line cleaning. The service life is 3 times longer than that of ordinary materials.
Product Features:
Super strong anti-corrosion design
Adopts 304 stainless steel integrated shell, acid and alkali resistant and corrosion resistant, suitable for harsh environments such as electroplating liquid flushing and chemical pipeline descaling.
Fully sealed protection
Triple O-ring seal + special air path design to prevent high-pressure water mist penetration, and maintain stable torque output in 80℃ steam cleaning environment.
No impact at start-up
The pneumatic motor uses compressed air as power, which starts smoothly and does not cause pressure on the equipment
Product Usage:
Food and medicine industry: suitable for aseptic filling equipment and pharmaceutical pipeline CIP cleaning. 304 stainless steel is acid and alkali resistant, easy to disinfect, and meets FDA hygiene standards.
Chemical corrosion protection scenario: used for reactor stirring and electroplating liquid circulation pump drive. It has strong corrosion resistance and can be in contact with chemical media for a long time.
DETAIL PARAMETERS
Parameter (English) | Value |
Product Name | Planetary Pneumatic Motor |
Product Brand | GASTON |
Product Model | GT36DL-T-K-SS |
Working Fluid | Compressed Air |
Working Pressure | 0.63 MPa |
Power | 0.25 KW |
Torque | 7 N.m |
Rated Speed | 320 rpm/min |
Air Consumption | 4 L/min |
Free Speed | 680 rpm/min |
Operating Temperature | -10~70°C |
Weight | 0.65 KG |
Rotation Direction | Unidirectional Right Rotation |
Nabe | Type | Power | Horsepower | Speed | Torque | Air Consumption | Rotation | Weight | Input Hose (mm) Size | |||||
Free Speed | At Max. HP | Max. Torque | Max. Static Torque | |||||||||||
KW | H P | rpm/min | rpm/min | Nm | Ibf.ft | Nm | lbf.ft | L/S | CFM | KG | ||||
GT27S | GT36S-138 | 0.16-0.25 | 0.22-0.34 | 13800 | 6500 | 0.2 | 0.2 | 0.4 | 0.3 | 5.0 | 11 | Bidirectional | 0.85 | 8 |
GT36S-030 | 300 | 1400 | 1.1 | 0.8 | 1.3 | 1.0 | 5.0 | 11 | Bidirectional | 0.85 | 8 | |||
GT36S-21 | 2100 | 1000 | 1.5 | 1.1 | 1.8 | 1.3 | 5.0 | 11 | Bidirectional | 0.85 | 8 | |||
GT36S-13 | 1350 | 650 | 2.4 | 1.8 | 3.0 | 2.2 | 6.0 | 11 | Bidirectional | 0.85 | 8 | |||
GT36S-070 | 680 | 320 | 5.0 | 3.7 | 6.0 | 4.4 | 7.0 | 11 | Bidirectional | 0.85 | 8 | |||
GT36S-050 | 500 | 240 | 7.0 | 5.2 | 8.0 | 5.9 | 8.0 | 11 | Bidirectional | 0.85 | 8 | |||
GT36S-0030 | 300 | 140 | 10.8 | 8.0 | 13.5 | 10.0 | 9.0 | 11 | Bidirectional | 0.85 |
8 |

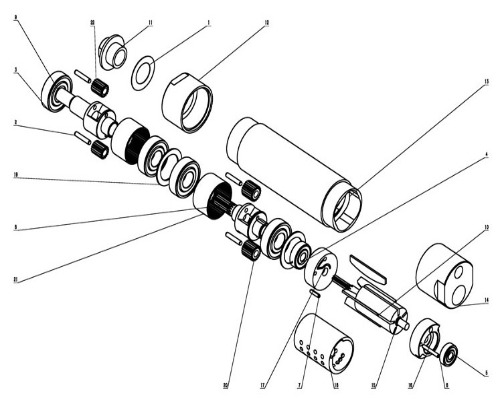

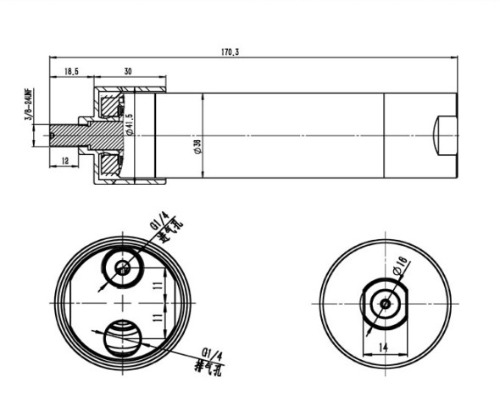

Schematic plan view: Product breakdown diagram:
NO. | Name (English) | Quantity | NO. | Name (English) | Quantity |
1 | Felt washers | 1 | 12 | Housing front cover | 1 |
2 | Cylindrical pins | 4 | 13 | Housing | 1 |
3 | Deep groove ball bearings | 4 | 14 | Air intake cover | 1 |
4 | Deep groove ball bearings | 1 | 15 | Rotor | 1 |
5 | Deep groove ball bearings | 1 | 16 | Motor rear end cover | 1 |
6 | Elastic cylindrical pin | 1 | 17 | Motor front cover | 1 |
7 | Elastic cylindrical pin | 1 | 18 | Stator | 1 |
8 | Level 1 planetary carrier | 1 | 19 | Gasket | 1 |
9 | Out-shaft planetary carrier | 1 | 20 | Grade 1 planetary gear | 2 |
10 | Blade | 5 | 21 | Ring gear | 1 |
11 | Bearing cap | 1 | 22 | Secondary planetary gears | 2 |
