Custom AMP6-C High torque geared air motor

Anhui Gaston Precision Machinery Co, Ltd. Home / Product / Pneumatic Motor Series / Pneumatic Reduction Motor / AMP6-C High torque geared air motor
  • AMP6-C High torque geared air motor

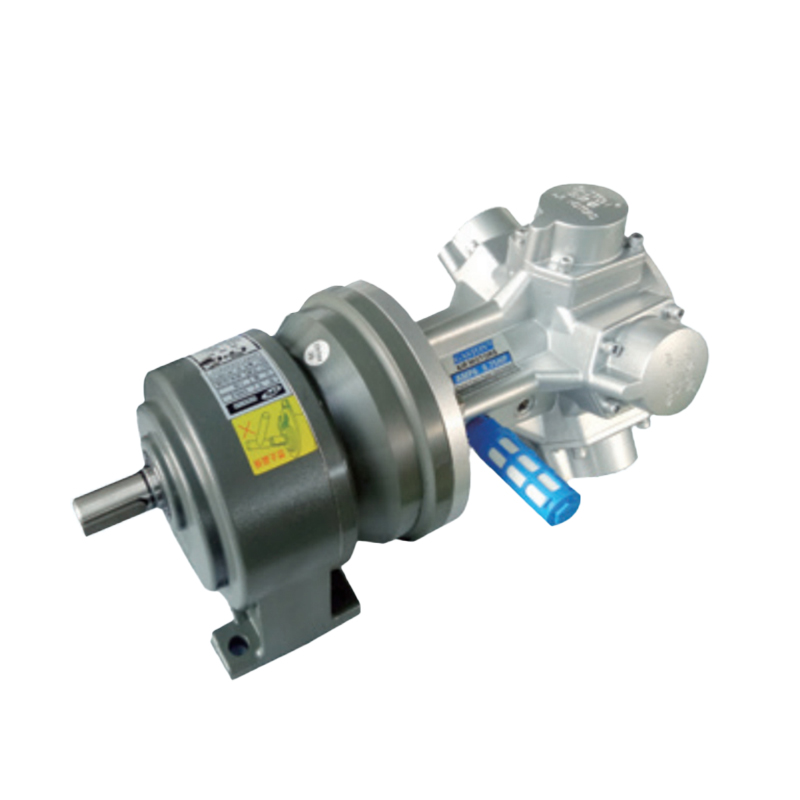

AMP6-C High torque geared air motor

AMP6-C helical gear reduction pneumatic motor product parameters:
Reduction ratio range: 3-150, power: 0.56KW, horsepower: 0.75HP, torque: 21.7-969.2N.m, free speed: 216-4RPM, air consumption: 0.5m³/min, weight: 7.3-11.2KG (different reduction ratios, different weights), optional installation methods: vertical, horizontal, optional manual control valve, brake, controller.

Standard features:
Using compressed air as the power source for safety and explosion-proof, the product has an explosion-proof certificate and meets national safety standards. The helical gear reducer uses the control valve to switch the start, adjustment, and stop, and can instantly reverse the direction. The motor is an overall enclosed design and can be used in dusty, humid, and harsh environments. It is widely used in the chemical industry, semiconductors, crystals, petrochemicals, biochemical technology, paint factories, automated machinery, and other industries.

Working environment:
Fluid: Compressed air
Using pressure: 5Kg/cm2 (70psi)
Maximum working pressure: 6Kg/cm2 (85psi)
Ambient temperature: -10°C~+70°C (can only be used in a non-freezing state)
Lubricating oil: IS0VG32 or similar. (It is necessary to apply oil with an oil mist, 2~3 drops per minute).
Continuous use: Yes (cannot run continuously without load).
Recommended speed: (0.3~1) x maximum output speed.

  • DETAIL PARAMETERS

Installation dimension drawing and dimension table

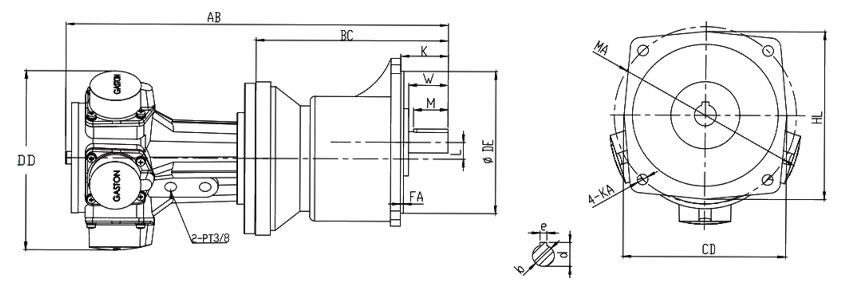

Vertical installation

Model Reduction ratio AB BC DE FA DD CD HL MA KA L K W M Axial end part
b d e

AMP5

AMP6

 3-10 388 195 148 3 120 165 175 185 11 17.5 48 40 35 Φ22h6 25 7
15.3" 7.68" 5.83” 0.12" 4.72” 6.5” 6.88" 7.28" 0.43” 0.69" 1.89" 1.57” 1.38” 0.87” 0.98" 0.27"
15-90 418 225 170 3 120 195 205 220 12 23 58 45 40 Φ28h6 31.1 7
16.5" 8.86” 6.67” 0.12" 4.72" 7.68” 8.07" 8.66” 0.47" 0.9" 2.28" 1.77” 1.57” 1.1” 1.22” 0.27"
100-200 448 255 185 3 120 225 248 255 15 30 65 55 50 Φ32h6 35.5 10
17.6” 10" 7.28” 0.12" 4.72" 10" 9.76" 10" 0.59" 1.18” 2.56” 2.17” 1.97” 1.26” 1.4” 0.39"

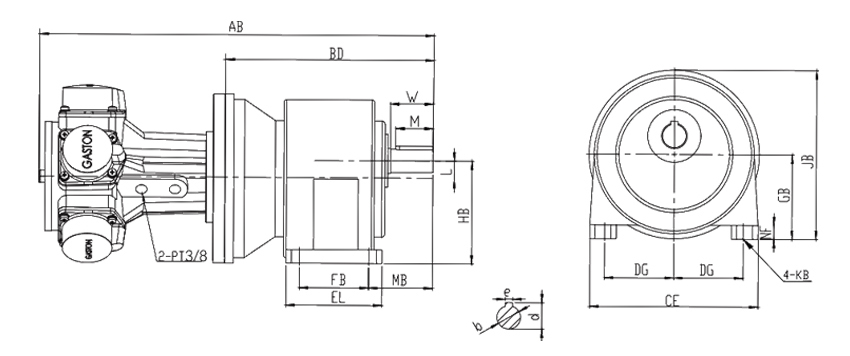

Horizontal installation

Model Reduction ratio AB BD FB EL MB HB L DG CE GB JB KB NF W M Axial end part
b d e
AMP5 AMP6 3-10 388 195 65 90 60 97.5 17.5 65 158 80 152 11 13 40 35 Φ22h6 25 7
15.3" 7.68" 2.56" 3.54" 2.36" 3.84" 0.69" 2.56" 6.22" 3.15” 5.98" 0.43" 0.51" 1.57" 1.38" 0.87” 0.98" 0.27"
15-90 418 225 90 120 68 116 23 70 178 93 178 11 17 45 40 Φ28h6 31.1 7
16.5" 8.86" 3.54" 4.72" 2.68" 4.57" 0.9" 2.76" 7" 3.66" 7" 0.43" 0.67" 0.67" 1.57" 1.1" 1.22” 0.27"
100-200 448 255 130 165 70 140 30 85 210 110 212 13 23 55 45 Φ32h6 35.5 10
17.6" 10" 5.12" 6.5” 2.75" 5.51" 1.18" 3.35" 8.27" 4.33" 8.35" 0.51" 0.91" 2.17" 1.77" 1.26" 1.4” 0.39"

Technical Data Sheet

Product Model Power Rated speed Torque Stop Torque Air consumption Weight
KW) (HP) (RPM) (Nm)   (Ift. bt) (Nm)  (lft. bt) (m3/min) (CFM) (KG)
AMP6-L/FG3 0.56 0.75 216 21.7 16 44.5 32.8 0.5 17.7 7.3
AMP6-L/FG5 0.56 0.75 130 35.6 26.3 74.6 55.1 0.5 17.7 7.3
AMP6-L/FG10 0.56 0.75 65 72 53.1 152.6 112.6 0.5 17.7 7.3
AMP6-L/FG15 0.56 0.75 43 106.2 78.4 226.2 166.9 0.5 17.7 8.5
AMP6-L/FG20 0.56 0.75 32 141.5 104.4 299.8 221.3 0.5 17.7 8.5
AMP6-L/FG30 0.56 0.75 21 209.5 154.6 450.4 332.4 0.5 17.7 8.5
AMP6-L/FG50 0.56 0.75 13 345.3 254.8 742.9 548.3 0.5 17.7 8.5
AMP6-L/FG80 0.56 0.75 8 542.5 400.4 1171.8 864.8 0.5 17.7 8.5
AMP6-L/FG100 0.56 0.75 6.5 668.5 493.4 1450.7 1070.6 0.5 17.7 11.2
AMP6-L/FG120 0.56 0.75 5.2 785.3 579.6 1696.7 1252.2 0.5 17.7 11.2
AMP6-L/FG150 0.56 0.75 4 969.2 715.3 2132.3 1573.6 0.5 17.7 11.2
