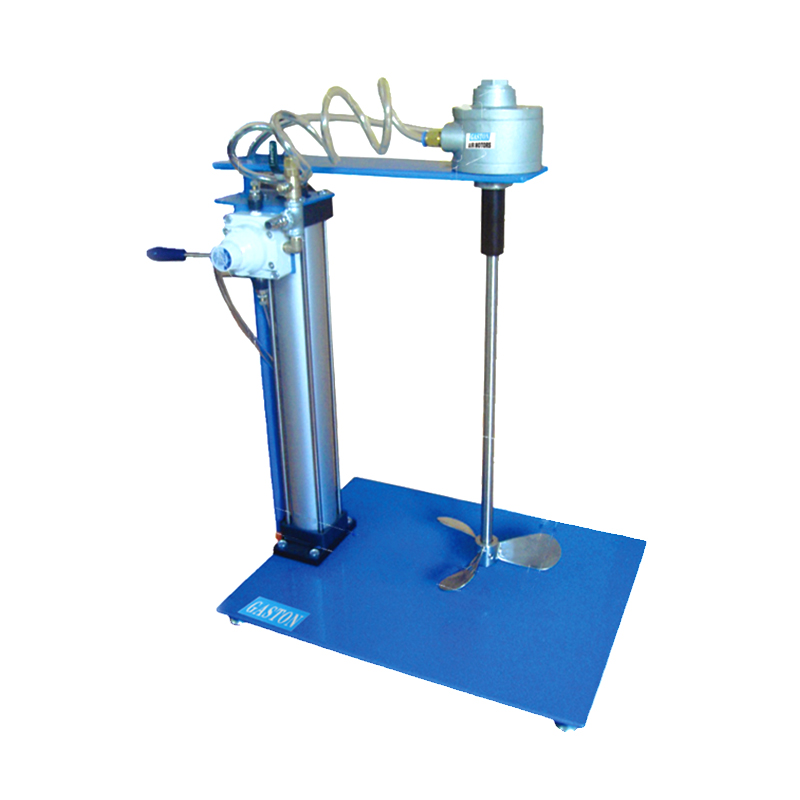

The QD-B-AMV explosion-proof mixer for Gaston chemical plants is an advanced tool for the chemical industry. With explosion-proof technology, it safely handles flammable and explosive materials. Constructed from high-grade materials, its robust design withstands harsh chemical environments. Its efficient mixing capabilities and precise control system guarantee rapid, even blending, enhancing product quality and production rates. Equipped with explosion-proof motors and switches, it safeguards operators' safety. The QD-B-AMV is an invaluable mixing solution for chemical production, research, and beyond.
DETAIL PARAMETERS

|
Motor Type |
Motor Model |
Horsepower |
Axis size (stainless steel) |
Blade (stainless steel) |
Blade type |
|
Piston motor |
AMP2 |
0.18HP |
Φ12mm×480mm |
Three-leaf type 6"×1 |
An optional three-leaf type Gear type, spiral type |
|
AMP3 |
0.25HP |
Φ16mm×480mm |
Three-leaf type 6"×1 |
||
|
AMP4 |
0.33HP |
Φ16mm×480mm |
Three-leaf type 8"×1 |
||
|
AMP5 |
0.50HP |
Φ16mm×480mm |
Three-leaf type 8"×1 |
||
|
Blade motor |
AMV0.68 |
0.93HP |
Φ12mm×480mm |
Three-leaf type 6"×1 |
|
|
AMV1.3 |
1.70HP |
Φ16mm×480mm |
Three-leaf type 8"×1 |
||
|
AMV3 |
4.00 HP |
Φ16mm×480mm |
Three-leaf type 8"×1 |
||
|
Manufactured for customized requirements. |
|||||
