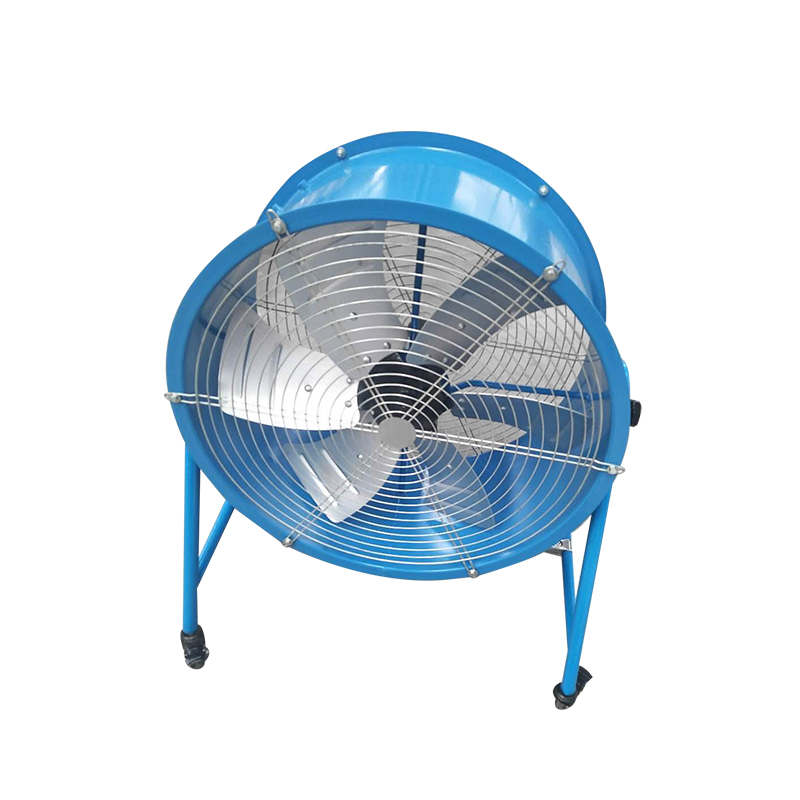

ZL-18 Gaston explosion-proof axial flow fan is an efficient and reliable industrial fan specially designed for ventilation and exhaust in hazardous environments. Its explosion-proof design complies with strict safety standards and is suitable for chemical plants, oil and gas industries, and other places that require explosion-proof equipment.
The ZL-18 Gaston fan can effectively transport air and provide powerful air volume and stable wind pressure using advanced axial flow fan technology. Even in high temperatures, high humidity, and highly corrosive environments, its design can ensure continuous and stable operation, ensuring safety and comfort in the workplace.
ZL-18 Gaston explosion-proof axial flow fan has the characteristics of a compact structure, small size, and lightweight. It is easy to install and has a wide range of applications. Its energy-saving and environmentally friendly design helps reduce energy consumption, reduce environmental pollution, and meet the requirements of sustainable development.
The fan is equipped with an advanced control system that can adjust the air volume and pressure according to actual needs, improving the operating efficiency and reliability of the entire system. Whether in a conventional industrial environment or a place with explosion risk, the ZL-18 Gaston explosion-proof axial flow fan can provide safe and efficient ventilation solutions to create a safer and more comfortable working environment for users.

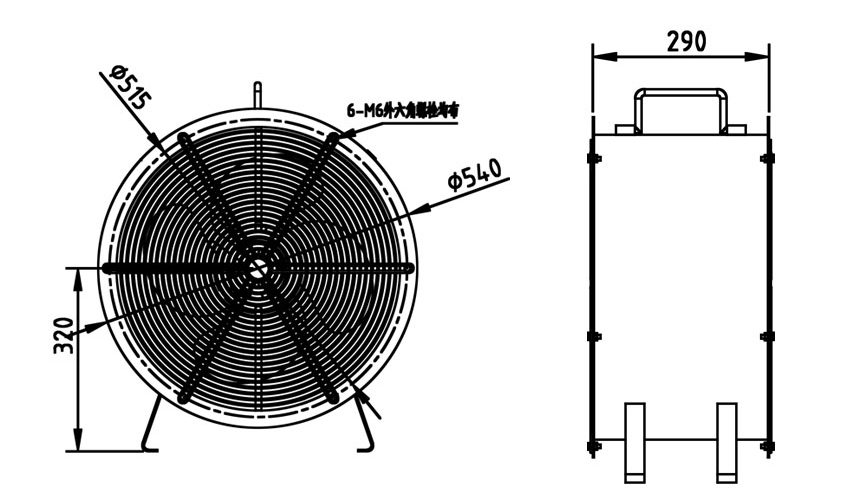

DETAIL PARAMETERS
Gaston | Size | 8” | 12” | 18" | 24” | 30” |
A(Diameter mm) | 260 | 385 | 560 | 685 | 980 | |
B(Thickness mm) | 210 | 225 | 290 | 335 | 350 | |
D(Height)mm | 268 | 395 | 640 | 695 | 1000 | |
C Blade diameter | 210 | 310 | 460 | 610 | 900 | |
Fan diameter (mm) | 240 | 365 | 540 | 665 | 920 | |
Total weight (kg) | 5.5 | 6.8 | 14.5 | 16 | 32 | |
Air volume m³/hr | 2200 | 3800 | 4500 | 6000 | 20000 | |
Consumption m³/min | 0.83 | 0.83 | 0.83 | 2 | 4.8 | |
Wind pressure Pa | 68 | 70 | 90 | 100 | 120 | |
Consumption Db(A) | 68 | 72 | 78 | 85 | 90 | |
Job stress: less than 7 kg/cm² Shell material: carbon steel blade material Aluminum alloy appearance treatment: spray processing |
