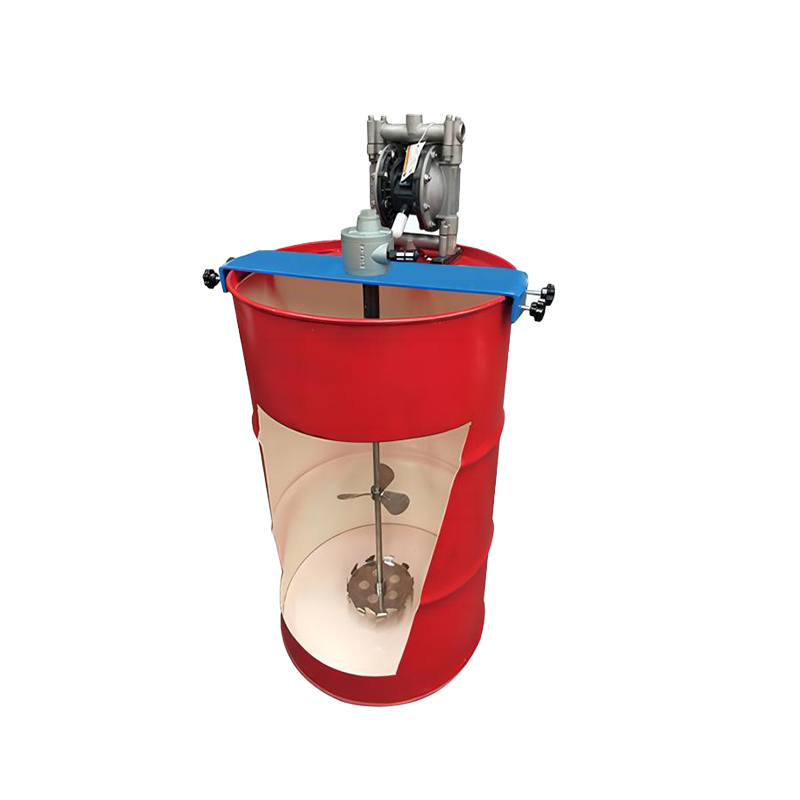

HB-AMV1.3 Gaston chemical mixer is a mixing equipment specially customized for the chemical industry. It is well-designed and made of high-quality materials to ensure stable operation in harsh chemical environments. The mixer has an efficient mixing capacity and precise control system, which can quickly mix various chemical raw materials to ensure product quality and uniformity. In addition, its unique sealing design and explosion-proof function ensure the safety and reliability of the operation process. Whether it is laboratory research and development or large-scale production, the HB-AMV1.3 Gaston chemical mixer can provide stable and efficient mixing solutions.
DETAIL PARAMETERS
Motor Type |
Motor Model |
Horsepower |
Axis size (stainless steel) |
Blade (stainless steel) |
Blade type |
Piston motor |
AMP3 |
0.25HP |
Φ16mm×800mm |
8"×2 |
Optional: three-leaf type, gear type, spiral type, dispersion disc, etc. |
AMP5 |
0.5HP |
Φ16mm×800mm |
8"×2 |
||
AMP6 |
0.75HP |
Φ20mm×800mm |
8"×2 |
||
AMP7 |
1.1HP |
Φ20mm×800mm |
8"×2 |
||
Blade motor |
AMV1.3 |
1.7HP |
Φ16mm×800mm |
8"×2 |
|
AMV3 |
4HP |
Φ20mm×800mm |
8"×2 |
||
AMV3.9 |
5.2HP |
Φ20mm×800mm |
8"×2 |
||
Manufactured for customized requirements. |
