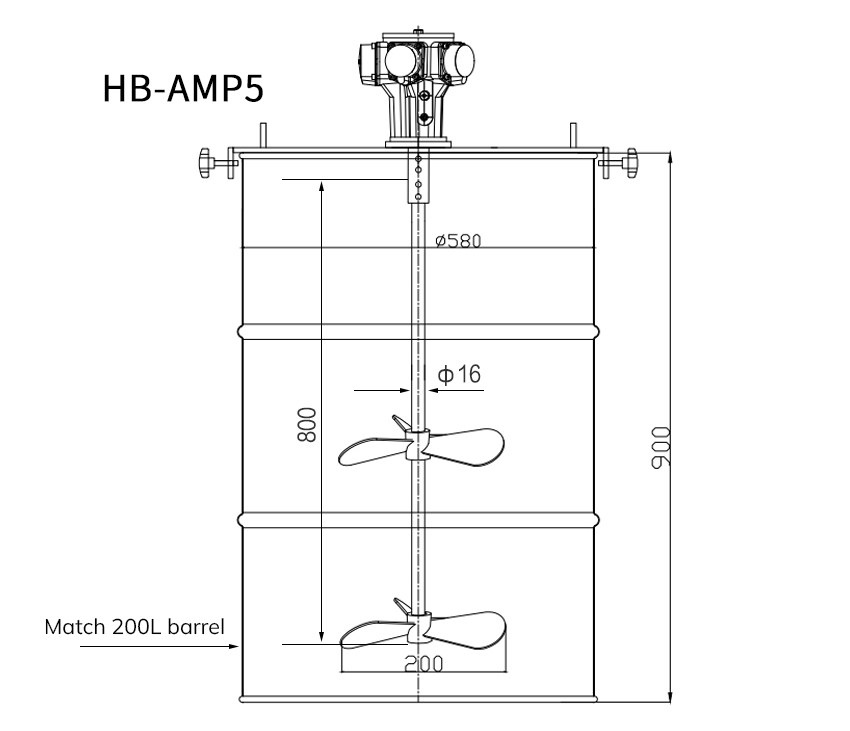

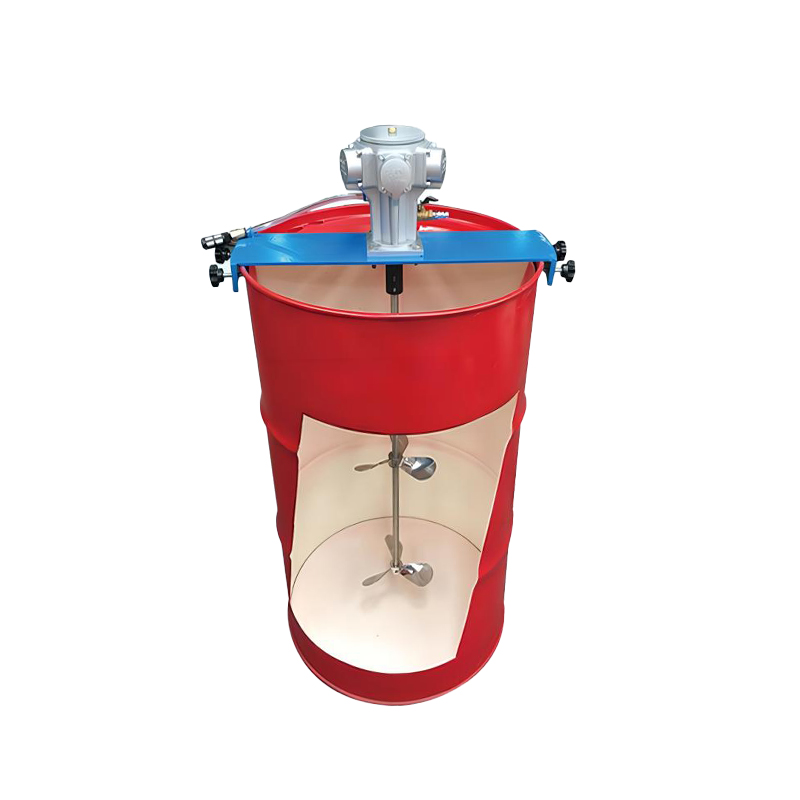

The HB-AMP5 Gaston fully automatic mixer is a powerful mixing equipment designed for efficient mixing and stirring of various materials. It uses compressed air as the power source and combines it with an explosion-proof pneumatic motor to ensure the safety and stability of operation. The fully automatic control system makes operation easier. Users only need to set parameters, and the machine can automatically complete the mixing task. In addition, the HB-AMP5 Gaston fully automatic mixer has mixing capabilities and wide applicability and can handle a variety of materials from chemical raw materials to food additives. Whether it is laboratory research or industrial production, it is your indispensable mixing equipment.
DETAIL PARAMETERS
|
Motor Type |
Motor Model |
Horsepower |
Axis size (stainless steel) |
Blade (stainless steel) |
Blade type |
|
Piston motor |
AMP3 |
0.25HP |
Φ16mm×800mm |
8"×2 |
Optional: three-leaf type, gear type, spiral type, dispersion disc, etc. |
|
AMP5 |
0.5HP |
Φ16mm×800mm |
8"×2 |
||
|
AMP6 |
0.75HP |
Φ20mm×800mm |
8"×2 |
||
|
AMP7 |
1.1HP |
Φ20mm×800mm |
8"×2 |
||
|
Blade motor |
AMV1.3 |
1.7HP |
Φ16mm×800mm |
8"×2 |
|
|
AMV3 |
4HP |
Φ20mm×800mm |
8"×2 |
||
|
AMV3.9 |
5.2HP |
Φ20mm×800mm |
8"×2 |
||
|
Manufactured for customized requirements. |
|||||
