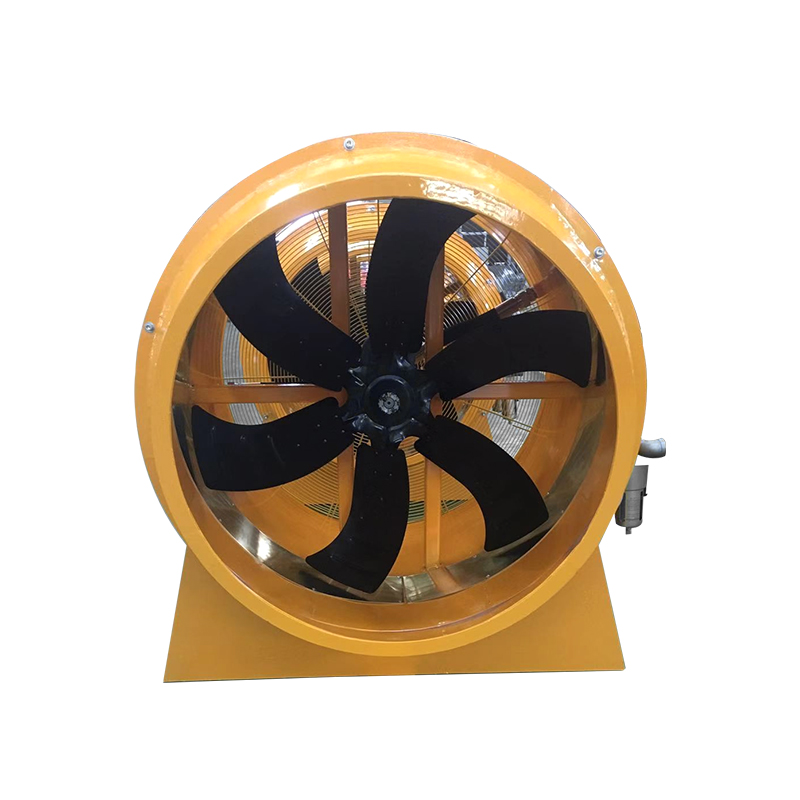

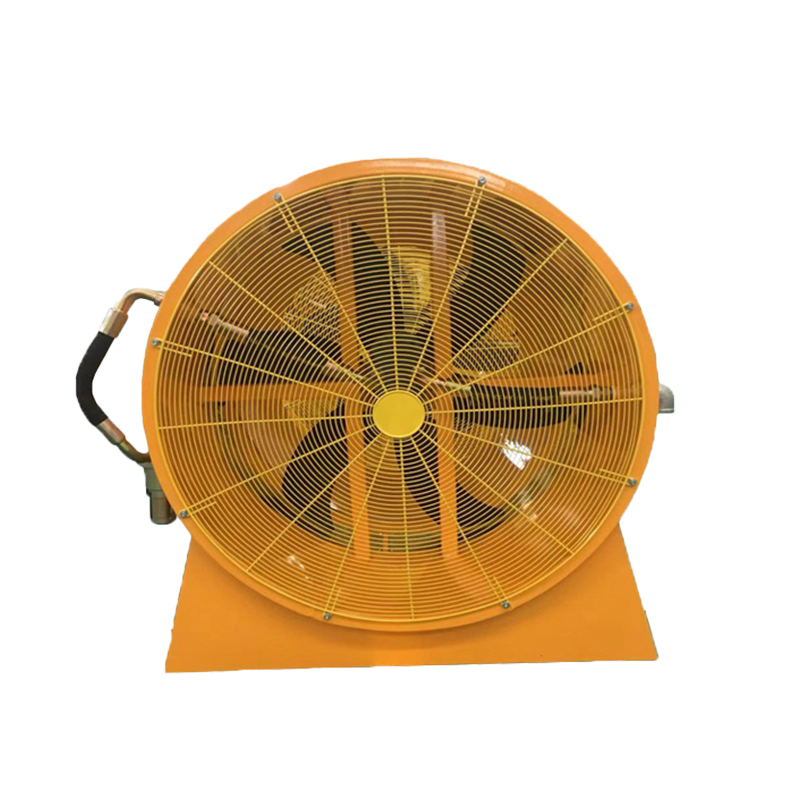

ZL-38 Gaston mining axial flow fan

ZL-38 Gaston mining axial flow fan is specially designed for mining environments to meet the ventilation and gas treatment needs under harsh working conditions. Its unique axial flow design allows air to flow inside the equipment and push the air out through the high-speed rotating shaft blades, thereby effectively achieving air circulation and gas discharge. Using high-quality materials and advanced manufacturing processes, this fan has durability and stability and can operate for a long time in harsh environments without being affected.

The main features of the ZL-38 Gaston mining axial flow fan include high efficiency, low noise, energy saving, and environmental protection. Its precision design and optimized blade structure enable the fan to provide powerful wind while maintaining a low noise level, reducing interference to the working environment. At the same time, the fan adopts an energy-saving design to minimize energy consumption, reduce operating costs, and meet the requirements of modern industry for environmental protection and sustainable development.

This product has flexible and diverse installation methods and can be installed horizontally or vertically according to actual needs to adapt to different working scenarios and space constraints. Its compact structure, easy operation, and convenient maintenance provide convenience to users. ZL-38 Gaston mining axial flow fan is a wind power equipment with performance and wide application, which provides a reliable guarantee for mine ventilation and gas treatment.

  • DETAIL PARAMETERS

Gaston Size 8” 12” 18" 24” 30”
A(Diameter mm)  260 385 560 685 980
B(Thickness mm)   210 225 290 335 350
D(Height)mm  268 395 640 695 1000
C Blade diameter 210 310 460 610 900
Fan diameter (mm)  240 365 540 665 920
Total weight (kg)  5.5 6.8 14.5 16 32
Air volume m³/hr  2200 3800 4500 6000 20000
Consumption m³/min  0.83 0.83 0.83 2 4.8
Wind pressure Pa  68 70 90 100 120
Consumption Db(A) 68 72 78 85 90

Job stress: less than 7 kg/cm²

Shell material: carbon steel blade material

Aluminum alloy appearance treatment: spray processing
