Custom HQ 20 Ton Pneumatic Hoist

Anhui Gaston Precision Machinery Co, Ltd. Home / Product / Pneumatic Hoist Series / HQ Series Mining Pneumatic Hoist / HQ 20 Ton Pneumatic Hoist
  • HQ 20 Ton Pneumatic Hoist

HQ 20 Ton Pneumatic Hoist

20-ton pneumatic hoist for mining, working air pressure: 0.63Mpa, number of chains: 4, motor output power: 3.5KW, lifting height: standard height is 3 meters, and the lifting stroke can be customized to be extended. Full load lifting speed: 0.5M/MIN, chain size: 16*45mm, the pneumatic hoist uses a vane-type pneumatic motor as the power, and the compressed air drives the motor to rotate, and the gearbox drives the sprocket to rotate to complete the lifting work. It can run continuously because the pneumatic motor does not heat up, and the running air pressure keeps dust, dirt, moisture and corrosive gases out of the shell, running without sparks, safe and explosion-proof. It is suitable for flammable, explosive, high-temperature, high-dust and highly corrosive places such as mines, petroleum, logistics, and docks.

  • DETAIL PARAMETERS

Air pressure

(PSI)

Air pressure

(Mpa)

Maximum Power

(HP)

Free speed

(rpm)

Speed ​​at maximum power

(rpm)

Torque at maximum power

( N M )

Gas consumption at maximum power

(m³/min)

Stop torque and start torque

(NM)

40

0.28

45%

80%

30%

37.50%

45%

45%

50

0.35

56%

84%

44%

52.40%

56%

56%

60

0.4

67%

88%

58%

65.90%

67%

67%

70

0.48

78%

92%

72%

78.30%

78%

78%

80

0.55

89%

96%

86%

89.60%

89%

89%

90

0.63

100%

100%

100%

100%

100%

100%

100

0.7

110%

104%

114%

109.60%

110%

110%
The figure shows a typical pneumatic motor torque and power curve at two different air pressures. The speed, torque and power of the motor decrease as the air pressure decreases. The figure shows the torque and speed curves of the pneumatic motor under two different air pressures. The speed and torque of the motor decrease as the air pressure decreases. The torque decreases significantly, while the motor speed decreases slightly as the pressure decreases.

Pneumatic hoist

Mold

Unit

HQ6-2

HQ8-2

HQ10-2

HQ12-2

HQ16-3

HQ20-4

Air pressure

Mpa

0.4

0.6

0.4

0.6

0.4

0.6

0.4

0.6

0.6

0.6

Load

Tons

6

 8

10

 12 16 20

Number of chains

root

2

2

2

2

3

4

Motor output power

KW

1.8

3.5

1.8

3.5

1.8

3.5

1.8

3.5

3.5

3.5

Lifting height

M

The standard height is 3 meters

Full load lifting speed

m/min

1.4

2.3

1

1.6

0.8

1.2

0.5

1.1

1

0.5

No-load lifting speed

m/min

3

5

2

3.1

1.5

2.5

1.2

2.3

2

1.2

Full load descent speed

m³/min

3.5

5.5

2.8

3.9

2.2

2.8

1.8

2.5

1.6

1.6

Full load gas consumption - increased

m³/min

2

4

2

4

2

4

2

4

4

4

Full load gas consumption - down

m³/min

3.5

5.5

3.5

5.5

3.5

5.5

3.5

5.5

5.5

5.5

Chain size

mm

13*36

16*45

16*45

16*45

16*45

Chain weight

kg/m

3.8

5.8

5.8

5.8

3.8

3.8

Standard weight

kg

98

115

115

119

210

310

(3m lifting height)

Controller air pipe length

m

 The standard height is 3 meters

Full load noise - increased

dB

74

78

74

78

74

78

74

78

78

78

Trachea connector

in

G3/4

G3/4

78

78

G3/4

G3/4

Air pipe size (inner diameter c)

mm

19

19

19

19

19

19









Walking car

Mold

Unit

HQ6-2

HQ8-2

HQ10-2

HQ12-2

HQ16-3

HQ20-4

Motor power

kw

2

2

2

2

3

3

Rated load speed

m/min

10

9

9

8

5

5

Motor air consumption

m/mim

2.6

2.6

2.6

2.6

2.5

2.5

Trachea connector

in

G3/4

G3/4

G3/4

G3/4

G3/4

G3/4

Air pipe size (inner diameter)

mm

19

19

19

19

19

19

Weight (trolley)

kg

75

89

89

89

136

247

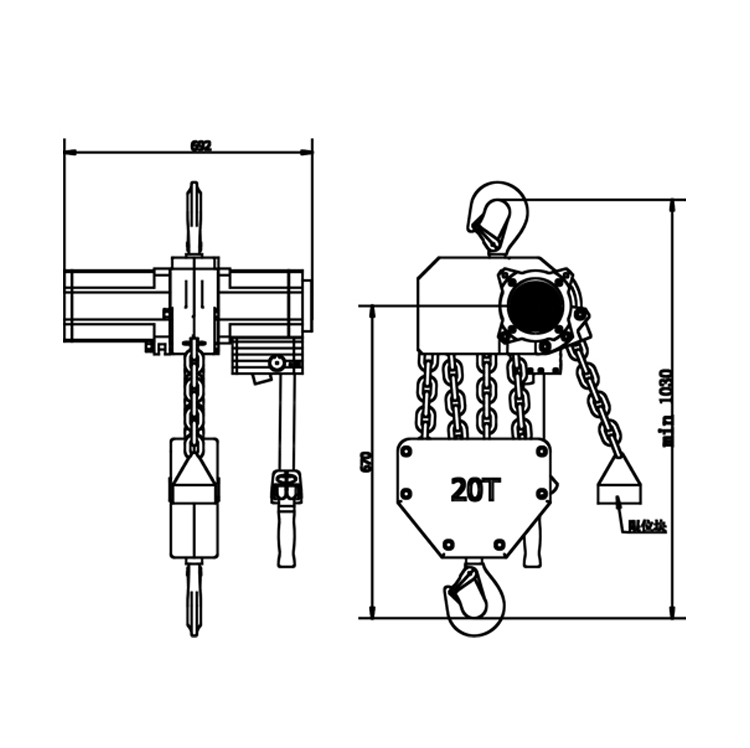

Dimensions

Model Unit HQ0.25-1 HQ0.5-2 HQ1-1 HQ1-2 HQ2-2 HQ3-1 HQ3-2 HQ5-2
A mm 690 690 690 556 556 905 690 685
A1 mm 608 608 608 585 585 885 608 625
B mm 340 340 436 35 35 539 436 450
C mm 151 151 202 146 146 246.5 202 220
D mm 164 164 176 185 185 220 176 260
E mm 96 96 100 140 140 146 100 170
F mm 50 50 150 385 385 158 150 158
J mm 50 50 90 65 65 120 90 120
K mm 23 23 26.5 26 26 38 26.5 38
H1 Minimum clearance mm 450 450 520 500 500 807 544 630
H2 mm 288 288 439 338 338 548 439 430
H3 mm 430 430 597 528 528 768 597 610
Φa mm 21 28 53 48 48 69 53 39
Φb mm 21 28 53 48 48 69 53 39
Φc mm 25 25 28 28 28 33 28 33
