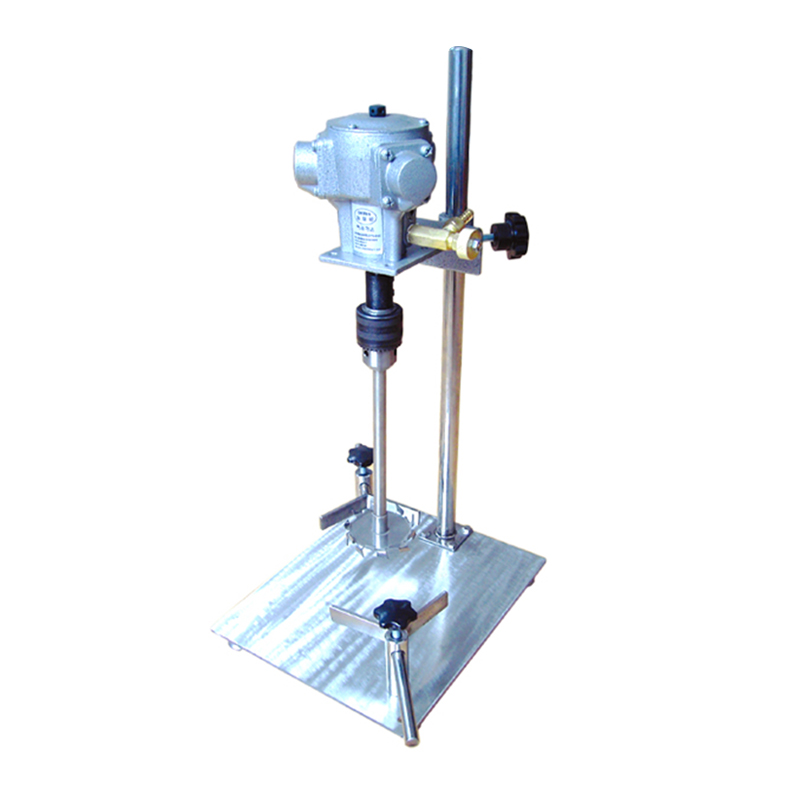

SY-A Gaston desktop pneumatic mixer is a mixing equipment specially designed for laboratories and small workplaces. It adopts a desktop design with a small footprint and is suitable for use in limited spaces. The SY-A mixer is equipped with a high-performance pneumatic motor, which can provide stable and powerful mixing force to ensure that the materials are fully mixed. The mixing blades are made of stainless steel, which is strong and durable, and can be selected according to different needs to meet the mixing requirements of different materials. In addition, the mixer also comes with a clamp and a quick chuck, which can quickly replace the mixing shaft, which is convenient and fast.
DETAIL PARAMETERS
Motor Type |
Motor Model |
Horsepower |
Axis size (stainless steel) |
Blade (stainless steel) |
Blade type |
Piston motor |
AMP2 |
0.18HP |
Φ12.7mm×220mm |
21/2"×1 |
Optional: stirring blade, dispersion disc. |
AMP3 |
0.25HP |
Φ12.7mm×220mm |
21/2"×1 |
||
Blade motor |
AMV0.68 |
0.9HP |
Φ12.7mm×220mm |
21/2"×1 |
|
AMV1.3 |
1.70HP |
Φ12.7mm×220mm |
21/2"×1 |
||
Manufactured for customized requirements. |
