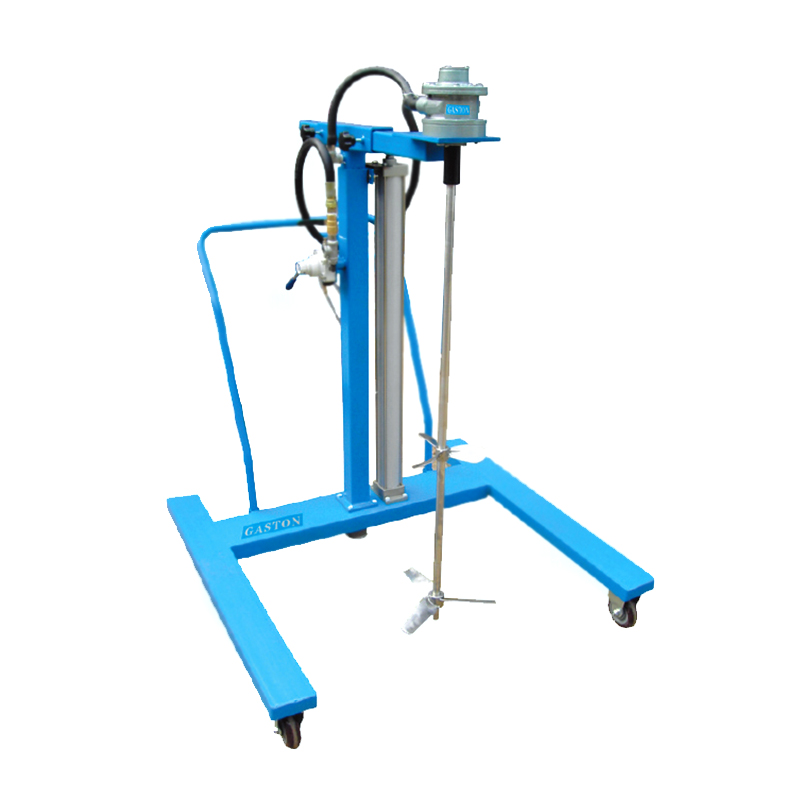

TC-AMV3 Gaston electrostatic spray trolley-type pneumatic mixer is an efficient and multi-functional mixing equipment. It adopts a sturdy U-shaped channel steel design with a stable structure and is suitable for various fluid tanks and drums. Equipped with four universal wheels, two fixed and two movable, making moving and transporting the equipment easy and convenient. One set of wheels is also equipped with a braking function to ensure that the trolley is stable and does not shift during work. The mixer controls the lifting height through the cylinder, allowing users to adjust the mixing position according to actual needs. At the same time, the stainless steel bucket cover it is equipped with can effectively prevent liquid splashing, odor emission, and dust from entering the mixing bucket, ensuring a clean and safe working environment. The attached pump and reducer realize the function of pumping liquid materials while stirring and increasing the motor torque respectively, making the mixing process more efficient and labor-saving.
DETAIL PARAMETERS
|
Motor Model |
Air consumption |
Power |
Maximum speed |
Maximum Torque |
||||
|
L/min |
HP |
KW |
Speed (RPM/min) |
Torque(Nm) |
Speed (rpm/min) |
Torque(Nm) |
||
|
Piston |
AMP2 |
210 |
0.16 |
0.12 |
1200 |
0.95 |
600 |
1.5 |
|
AMP3 |
260 |
0.25 |
0.18 |
1000 |
1.7 |
500 |
2.3 |
|
|
AMP4 |
310 |
0.33 |
0.24 |
900 |
3.5 |
450 |
4.7 |
|
|
AMP5 |
395 |
0.5 |
0.37 |
750 |
4.7 |
375 |
6.5 |
|
|
AMP6 |
504 |
0.75 |
0.56 |
650 |
7.6 |
325 |
11.5 |
|
|
AMP7 |
990 |
1.5 |
1.1 |
360 |
28 |
180 |
45.8 |
|
|
Blade Type |
AMV0.68 |
830 |
0.93 |
0.68 |
3000 |
2.2 |
1500 |
3.5 |
|
AMV1.3 |
1800 |
1.7 |
1.3 |
3000 |
4.1 |
1500 |
6.3 |
|
|
AMV3 |
3600 |
4 |
3 |
3000 |
10 |
1500 |
12.8 |
|
|
AMV3.9 |
4800 |
5.2 |
3.9 |
2500 |
14.8 |
1250 |
21 |
|
|
AMV7 |
7700 |
9.5 |
7 |
2000 |
34 |
1000 |
53 |
|
