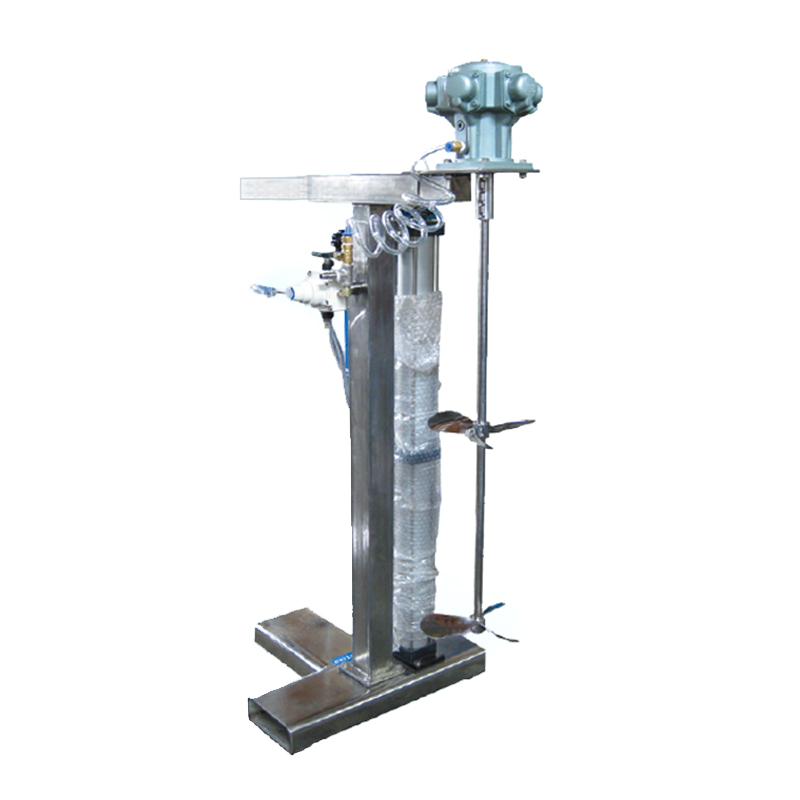

The T-P-SUS Gaston trolley-type pneumatic mixer adopts a trolley-type design which gives it mobility. Whether within the production workshop or between different production lines, the mixer can be easily moved to the required location with a simple operation, greatly improving the flexibility and applicability of the equipment. At the same time, the trolley is also equipped with a stable support structure and an easily adjustable mixing height to ensure stability and accuracy during the mixing process. The core component of the T-P-SUS Gaston Trolley Pneumatic Mixer is the pneumatic motor, which is driven by compressed air and does not require electrical support, so it can be used safely in some special environments such as flammable and explosive places. The pneumatic drive not only provides sufficient power but also ensures that the equipment has low noise and simple maintenance during operation, greatly improving work efficiency. The T-P-SUS Gaston trolley-type pneumatic mixer also has a variety of mixing methods and adjustable speed functions, which can be flexibly adjusted according to the characteristics and mixing needs of different materials.
DETAIL PARAMETERS
|
Motor Model |
Air consumption |
Power |
Maximum speed |
Maximum Torque |
||||
|
L/min |
HP |
KW |
Speed (RPM/min) |
Torque(Nm) |
Speed (rpm/min) |
Torque(Nm) |
||
|
Piston |
AMP2 |
210 |
0.16 |
0.12 |
1200 |
0.95 |
600 |
1.5 |
|
AMP3 |
260 |
0.25 |
0.18 |
1000 |
1.7 |
500 |
2.3 |
|
|
AMP4 |
310 |
0.33 |
0.24 |
900 |
3.5 |
450 |
4.7 |
|
|
AMP5 |
395 |
0.5 |
0.37 |
750 |
4.7 |
375 |
6.5 |
|
|
AMP6 |
504 |
0.75 |
0.56 |
650 |
7.6 |
325 |
11.5 |
|
|
AMP7 |
990 |
1.5 |
1.1 |
360 |
28 |
180 |
45.8 |
|
|
Blade Type |
AMV0.68 |
830 |
0.93 |
0.68 |
3000 |
2.2 |
1500 |
3.5 |
|
AMV1.3 |
1800 |
1.7 |
1.3 |
3000 |
4.1 |
1500 |
6.3 |
|
|
AMV3 |
3600 |
4 |
3 |
3000 |
10 |
1500 |
12.8 |
|
|
AMV3.9 |
4800 |
5.2 |
3.9 |
2500 |
14.8 |
1250 |
21 |
|
|
AMV7 |
7700 |
9.5 |
7 |
2000 |
34 |
1000 |
53 |
|
